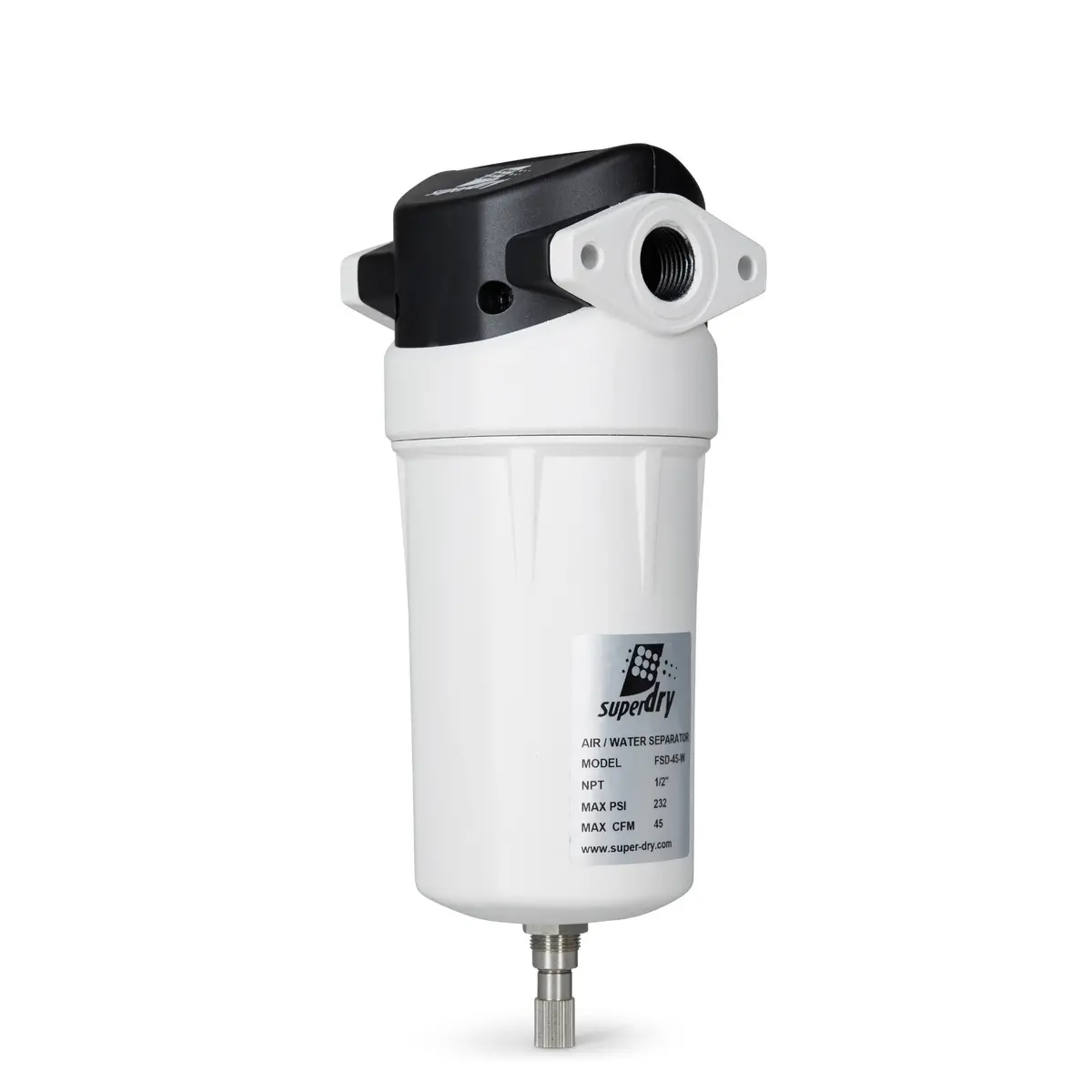

FSD-45-W 1/2-Inch Inline Water Separator

Description

DESCRIPTION

The FSD Series Water Separators have been designed for the efficient removal of bulk liquid contamination from compressed air.  The Super-Dry water separators use centrifugal motion to force liquid water out of compressed air.  Each centrifugal separator comes with a built-in float drain and an internal spinner.  That removes large quantities of condensate by centrifugal action.  Centrifugal water separator designs are installed upstream of a compressed air dryer or downstream of aftercoolers or air receivers.

SPECS

• INLET / OUTLET PORTS: 1/2″ NPT
• AIRFLOW @ 100 PSIG: 45 SCFM
• MAXIMUM INLET PRESSURE: 232 PSIG
• MAXIMUM INLET TEMPERATURE: 176°F (80°C)
• DRAINAGE: FLOAT DRAIN (INCL.) OR TIMER DRAIN (OPTION)
