2-Inch Water Separation Filter for Industrial Fluid Systems

Description

DESCRIPTION

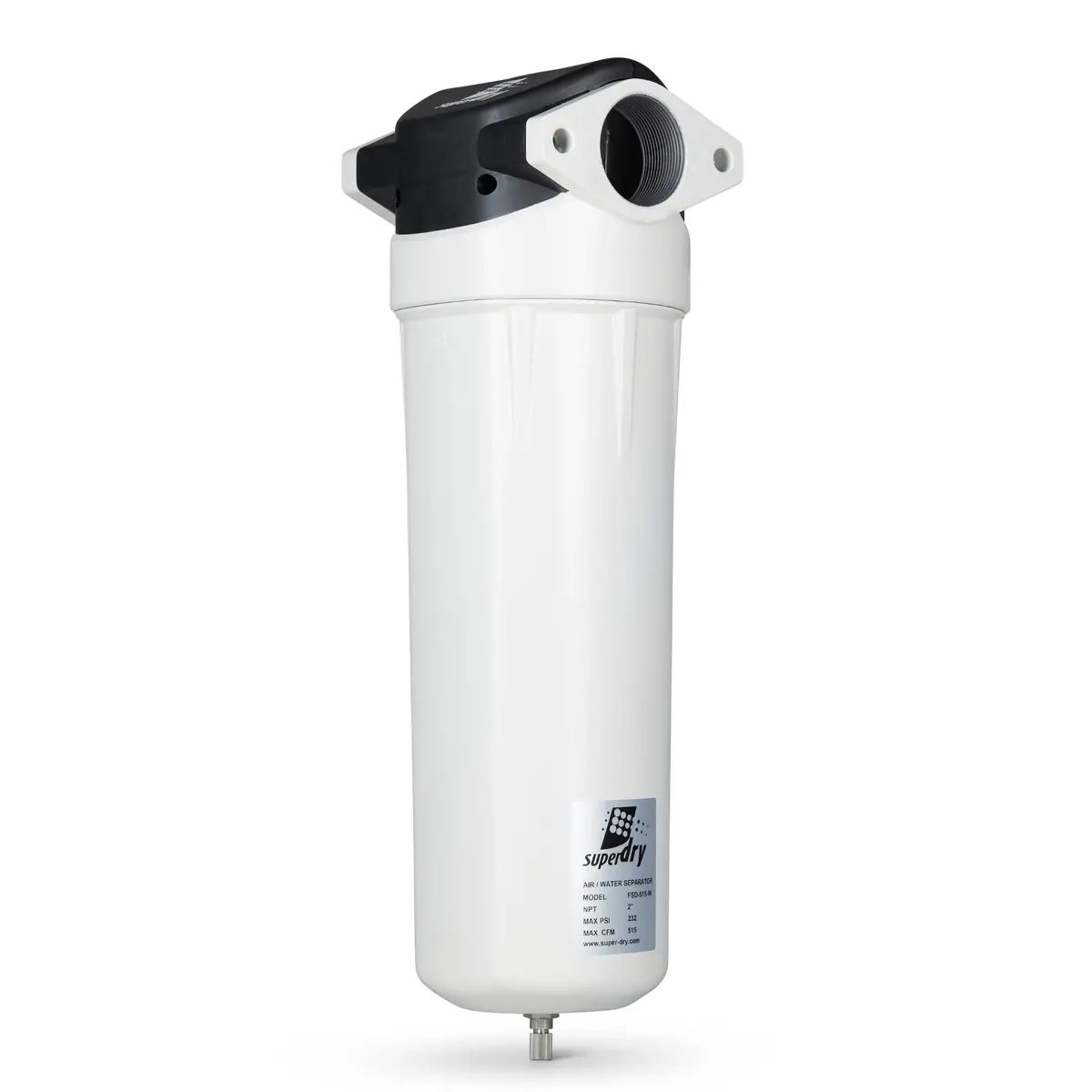

The FSD Series Water Separators have been designed for the efficient removal of bulk liquid contamination from compressed air.  The Super-Dry water separators use centrifugal motion to force liquid water out of compressed air.  Each centrifugal separator comes with a built-in float drain and an internal spinner.  That removes large quantities of condensate by centrifugal action.  Centrifugal water separator designs are installed upstream of a compressed air dryer or downstream of aftercoolers or air receivers.

SPECS

• INLET / OUTLET PORTS: 2″ NPT
• AIRFLOW @ 100 PSIG: 515 SCFM
• MAXIMUM INLET PRESSURE: 232 PSIG
• MAXIMUM INLET TEMPERATURE: 176°F (80°C)
• DRAINAGE: FLOAT DRAIN (INCL.) OR TIMER DRAIN (OPTION)
