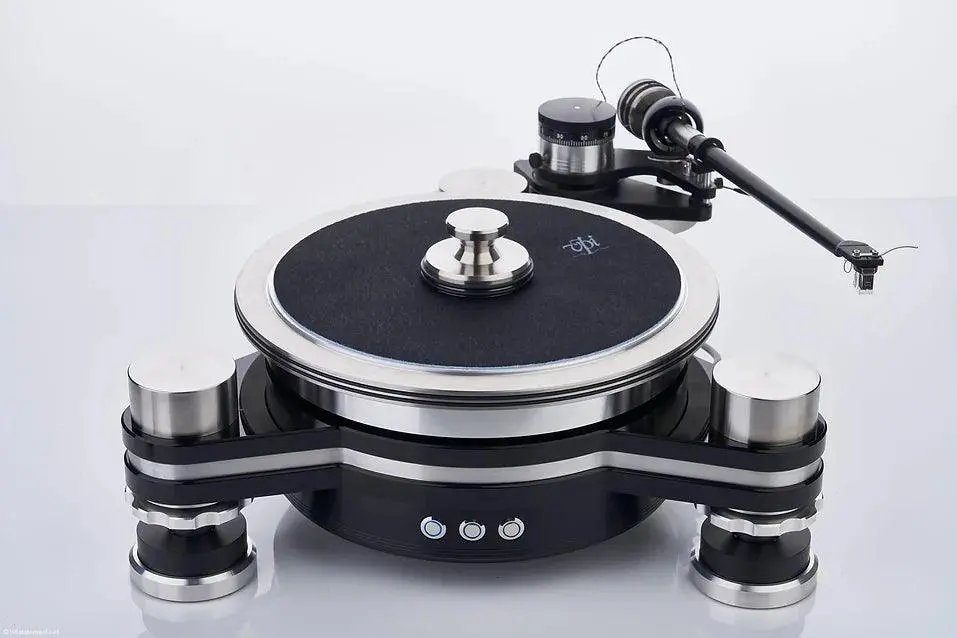

VPI Avenger Reference Direct-Drive Turntable

Description

Based on our known design of the Avenger Tripod Chassis, the Avenger Direct takes our Direct Drive technology and marries it with our Avenger Series.  The Avenger design has always been known as a “sandbox” type of design giving the owner the ability to mount up to 3 arms at any length or manufacturer model.
​
The heart of the Avenger Direct comes from our proven HW-40 Anniversary Direct Drive model.  Housed in an engineered and machined vented casing, the direct drive is ready to spin at the start of a button with 33 and 45

VPI Fatboy Gimbal 12-3D
Bearing Type: Full Gimbal Bearing
Pivot to spindle: 300 mm
Internal Wire: Nordost Reference Wire
Effective length: 313.0 mm
Effective mass: 12.5g.
Overhang: 13mm
Offset angle: 17.37 degrees
Average RMS distortion: 0.267%
Material: 3D Technology Consisting of but not limited to Epoxy resin and Delrin materials, copper, aluminum, and steel
​
Product Notes: Adjustable Drop Counterweight, Azimuth side weights, VTA, and Limo Connection.

Technical Specifications

Chassis Composition: Aluminum and machined acrylicPlatter Type & Size: 12″ Aluminum Platter, 25LBSTonearm Included: JMW-12- Fatboy GimbalMotor Type: Direct DriveMotor Torque: 2.68 Nm/secStar/Stop Time: 1 SecondSpeed Monitoring: 2,500 pulses/revolutionFootprint: 21¾” x 16 ¾”Overall Size: 22″ x 17″ x 10″Total Weight: 70lbs
