Shunyata Research Typhon T2 Power Conditioner

Description

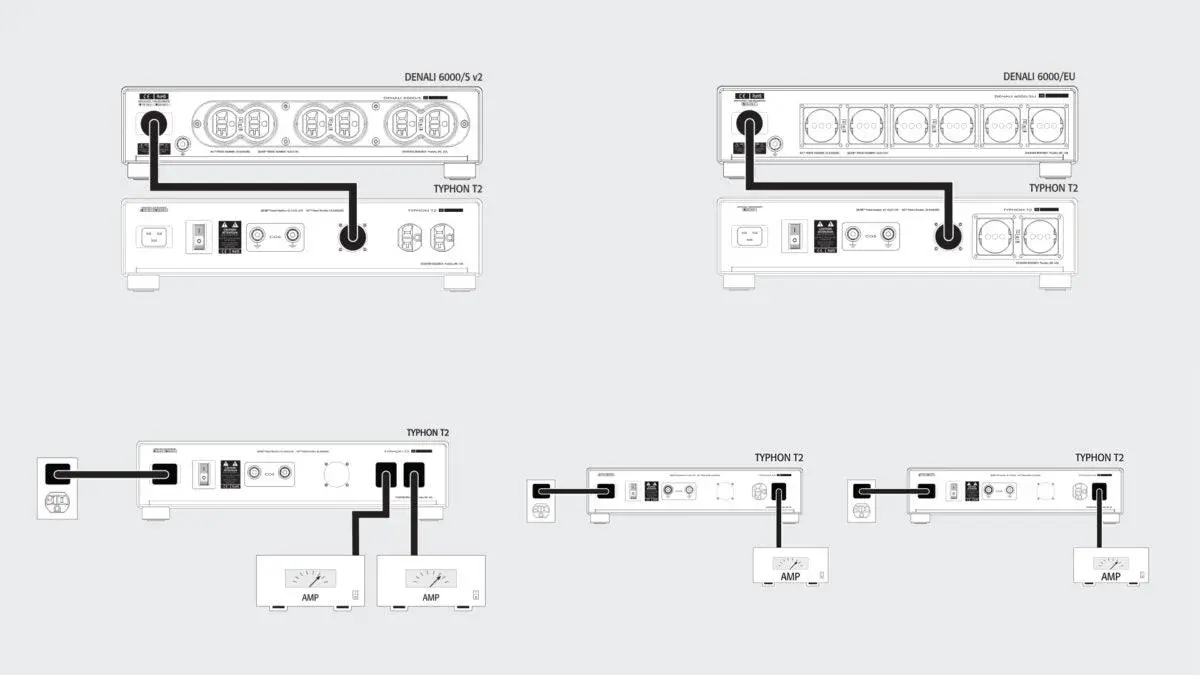

The Shunyata Research Typhon T2 represents a refined evolution of acclaimed power conditioning technology, distilled into a compact two-outlet design at half the size and cost of its predecessor. Engineered with advanced QRBB and NIC technologies, this high-current distributor operates effectively as a standalone reference component or integrates in-line with Shunyata Research systems to amplify performance. Its chassis matches the Denali 6000S/v2 for seamless stacking, while compatibility extends across the entire Shunyata lineup. Whether powering demanding amplifiers or serving as a performance multiplier within larger configurations, the Typhon T2 delivers measurable sonic enhancement across systems of any scale.

Specifications

Maximum Voltage:
90 – 125 VAC r.m.s. unregulated (US)
220-240VAC r.m.s. unregulated (EU, UK, AS)

Input Current Ratings:
US/AS maximum continuous current: 20A
US/AS maximum continuous current: 30A (optional)
EU/AU maximum continuous current: 16A
UK maximum continuous current: 16A

Output Current Ratings:
US/AS max current/outlet: 15A
EU max current/socket: 16A
UK max current/socket: 13A

Transient Suppression:
Maximum transient pulse 40,000 Amps @ 8/50 μs

Over-Current Protection:
Hydraulic electromagnetic breaker

Wiring System:
8 gauge ArNi® VTX-Ag™ bus system
10 gauge ArNi® VTX-Ag™ wiring
Ratings: 600 V 105° C

Noise Suppression:
Input to Output (100 kHz – 30 MHz): > 50 dB reduction
Zone to Zone (100 kHz – 30 MHz): > 40 dB reduction

Connectors & Sockets:
Inlet: IEC C19R
Inlet: Proprietary 30A Amphenol (30A Model only)
Twist-lock outlet: Proprietary Amphenol
US outlets: 2 NEMA 5-20R
AS outlets: 2 NEMA 5-20R
EU sockets: 2 CEE7/3
UK sockets: 2 botanicaSEATTLE 1363 (3 Pin)

Isolation Zones:
3 zones

Vibration Control:
Vibration dampening panels (internal)
AC outlet dampening gaskets
Shunyata Isolation SSF-38 Footer

Construction:
All aluminum chassis
Anodized, brushed aluminum faceplate

Dimensions:
Width: 17 inches (43.2 cm)
Depth: 10 inches (25.4 cm)
Height: 4.4 inches (11.2 cm)
Weight: 17.5 lbs (7.95 kg)
