Description

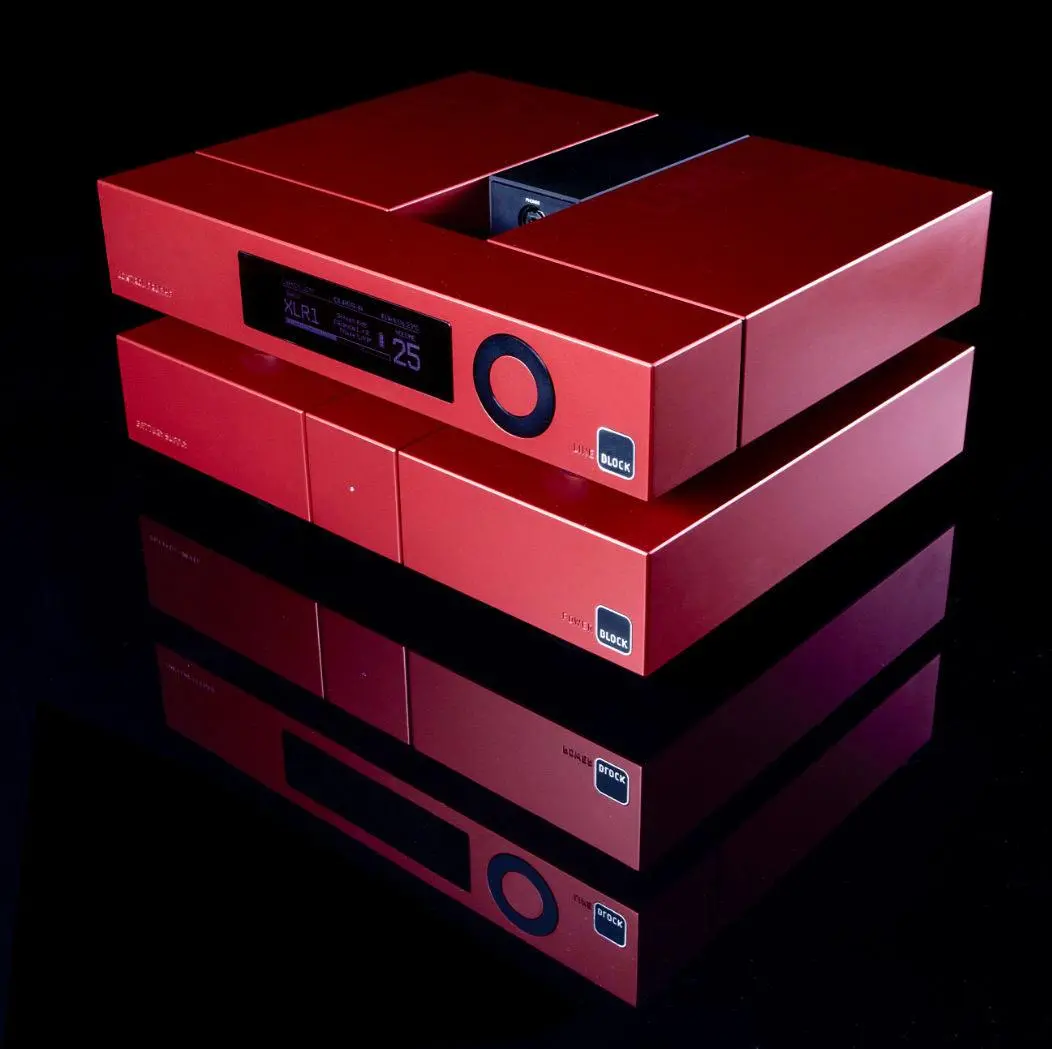

Battery-powered, Dual-Chassis & Dual-Mono Preamplifier
Taking rest, while the preamplifier is overtaking control of every detail needed, is the only thing you have to do.
The Line-Block is adding the desired level and settings to the signal while the electricity needed is conveyed by the Power-Block that runs on batteries and allows you to enjoy the ultimate sound quality for at least 15 hours. After that, the recharge mode is set automatically and the Power-Block works as an energy reservoir.
So you can stay hungry for the sound while your power amplifiers are being fed. Moreover, the Line-Block also guards the temperature of the Mono-Blocks through the communication channel.* And you? You can still continue on listening to your favorite records on and on.
FEATURES
- Battery-powered, Dual-Chassis & Dual-Mono configuration

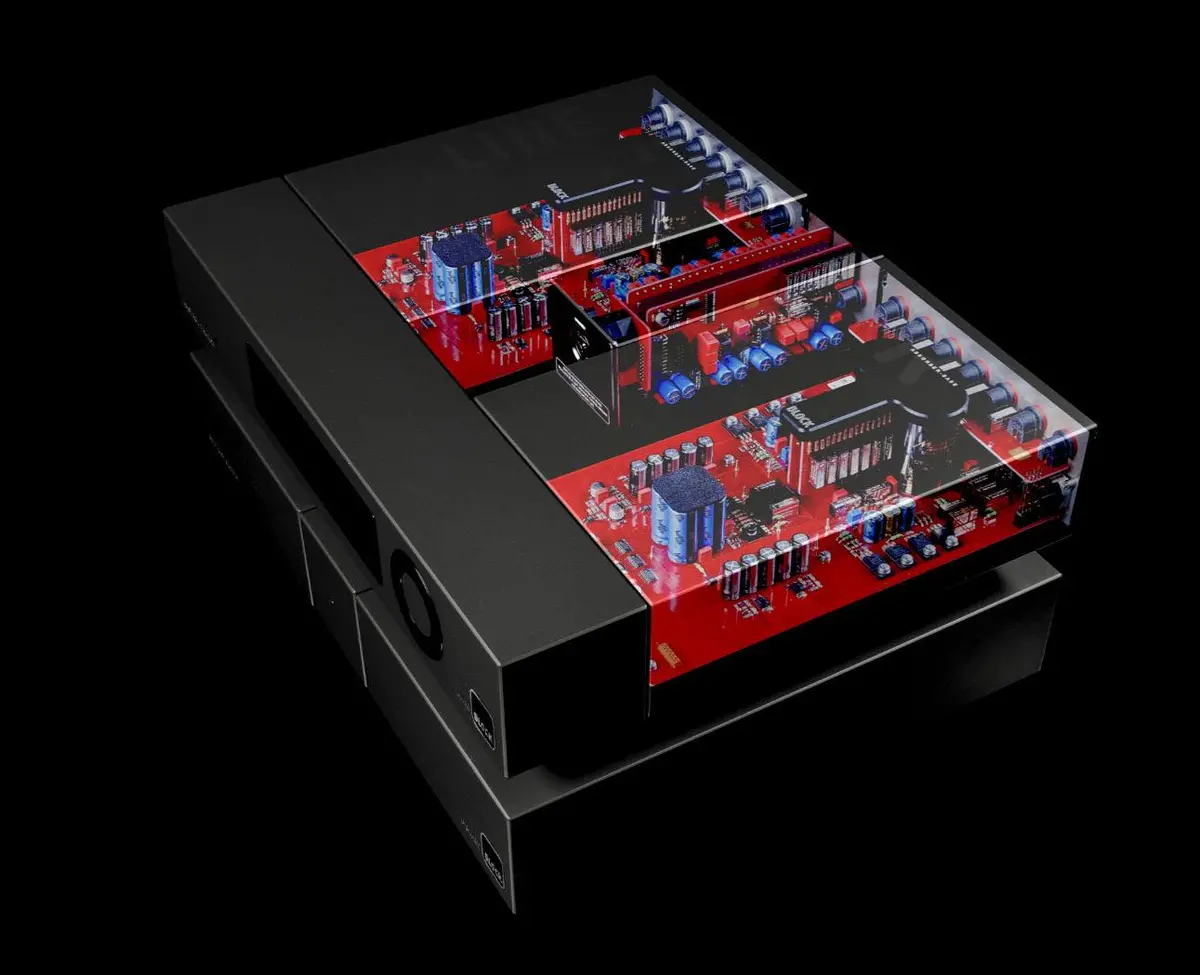

- Both channels, supply units, and non-audio circuits are physically separated, shielded, and electrically isolated
- Battery supply for audio circuits – each channel is powered by its own battery bank
- At least 15 hours of battery operation and a smart automatic function will activate charging mode when the battery becomes empty, or the preamp is switched off
- Short audio signals paths without any internal wiring
- An overall symmetrical design
- Separate grounds for left and right channel
- Class-A operation, all discrete audio circuitry
- DC signal coupling with Servo-Control
- Symmetrical relay volume attenuator
- 2 × 120 000 µF of power supply filter capacitance
- Adjustable input sensitivity and channel balance
- Full HT bypass function for all inputs
- The output phase invert function
- Two custom made low-noise and low-radiation toroidal transformers in decoupled and suspended mount cases
- Own physically separated and electrically isolated power supply for non-audio circuits
- Adjustable feet with integrated spikes
- User-selectable Battery or AC Mains operation mode
- Built-in Class-A headphone amplifier
- User-selectable Auto Power Off mode
- Auto brightness controlled graphical display and status LED
- Infrared remote control
- Built-in MC/MM Phono stage with remotely controlled settings
- System rem. control for power amplifier*
*works only together with appropriate BLOCK AUDIO Power Amplifier
SE FEATURES
- Special paint finish
- Upgraded Input stage transistors
- All metal Furutech RCA sockets for Phono input
SPECIFICATIONS
| Distortion: | THD+N <0.0005 %, IMD <0.0007 % (at 6 Vrms out) |
| Frequency Response: | DC – 300 kHz -0.5 dB, DC – 20 kHz -0.01 dB |
| Signal/Noise Ratio: | >130 dB A-weighted, >128 dB unweighted (related to full output) |
| Channel Separation: | Infinite (>130 dB) |
| Max. Voltage Gain: | +12 dB balanced, +18 dB unbalanced |
| Input Impedance: | 40 kΩ balanced, 20 kΩ unbalanced |
| Output Impedance: | 50 Ω balanced, 25 Ω unbalanced |
| Maximum Output Voltage: | 20 Vrms balanced, 10 Vrms unbalanced |
| Inputs: | 4 balanced (XLR) pairs, 5 unbalanced (RCA) pairs |
| Phono Input: | 1 unbalanced (RCA) pair |
| Outputs: | 2 balanced (XLR) pairs, 2 unbalanced (RCA) pairs |
| Phones Output: | 3 pole XLR receptacle and 6.35 mm / 1⁄4″ stereo jack |
| Battery Operation Time: | >15 hours |
| System Remote Control: | Yes*, Neutrik RJ45 |
| Power Consumption: | 150 W max. at charging, 50 W at idle, <0.5 W in Standby |
| Mains Voltage: | 230 / 115 V AC ±10 %, 50 / 60 Hz (factory pre-configured) |
| Dimensions – Line: | 460/18.1(w) × 105/4.1(h) × 360/14.2(d) mm/inch |
| Dimensions – Power: | 460/18.1(w) × 105/4.1(h) × 360/14.2(d) mm/inch |
| Weight in total: | 28 kg / 62 lbs., ~40 kg / 88 lbs. shipping |
