Pass Labs HPA-1 High-Performance Headphone Amplifier

Description

The Pass Labs HPA-1 is a Class A headphone amp that was designed to amplify headphones with impedances of 15 ohms to 600 ohms.

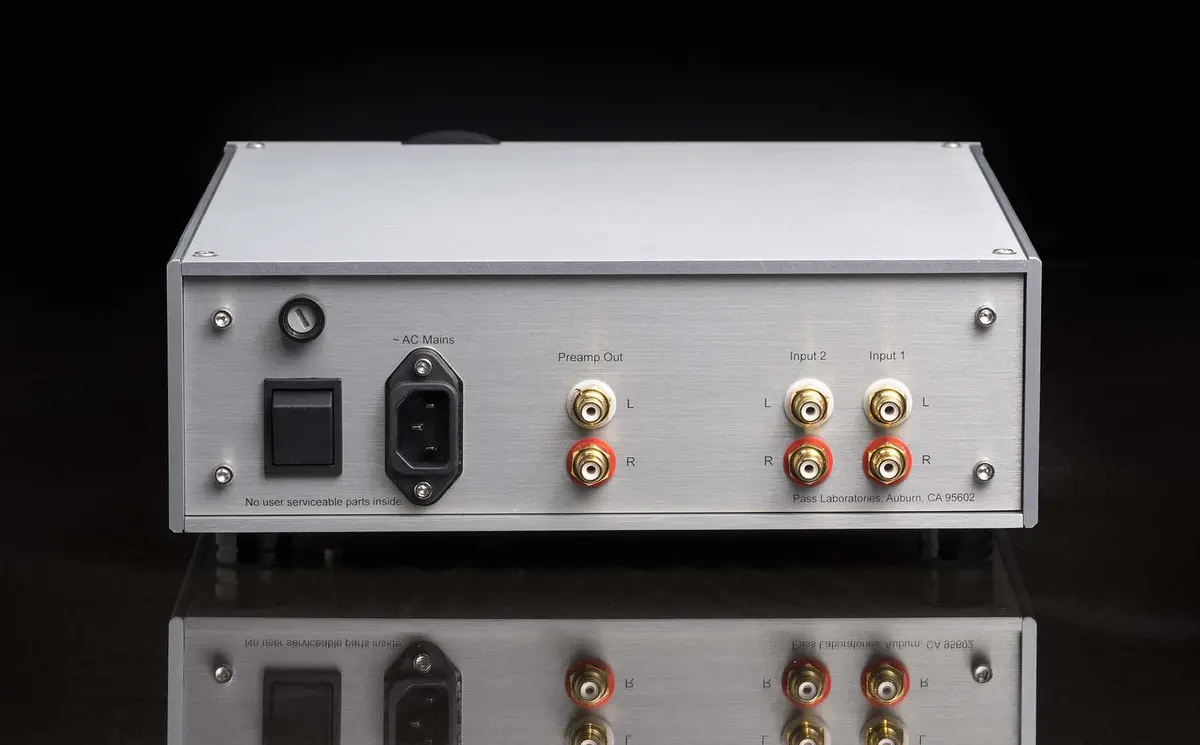

The HPA-1 delivers full-range dynamics and can drive any headphones. It’s designed as a Class-A power amp, with a low-noise, shielded toroidal power transformer and discrete low-noise regulated power supply for the audio circuits. Low-feedback, wide-bandwidth J-Fet input, and Class A-biased MOSFET output stages offer superior audio. It easily drives headphones from 15 to 600 ohms and boasts a rotary knob volume control, plus input and preamp output jacks. Its sturdy brushed aluminum casework adds to its appeal.

Specifications
Gain (dB) – 8 dB
Frequency Response 10 Hz-100k – 1dB
Output Power into 20 ohms – 3500 mW
THD + Noise – <0.005 at 1V out
Out Power into 300 ohms – 200 mW
Input Impedance – 50k ohm
Output Impedance – <2 ohms
Power Consumption (Watts) – 23
Unit Dimension (W x D x H) (In.). -11 x 13.5 x 4
Unit Weight (LBS) – 14

Main Features

• Works with headphones with impedances of 15 ohms to 600 ohms.
• Designed as a power amplifier rather than a typical headphone amplifier to be able to drive low-impedance planar headphones.
• Low feedback wide bandwidth discreet design.
• Class A direct coupled Mosfet output stage.
• Custom low noise Toroidal power transformer with a Faraday shield.
• Discreet regulated power supply for audio circuits.
