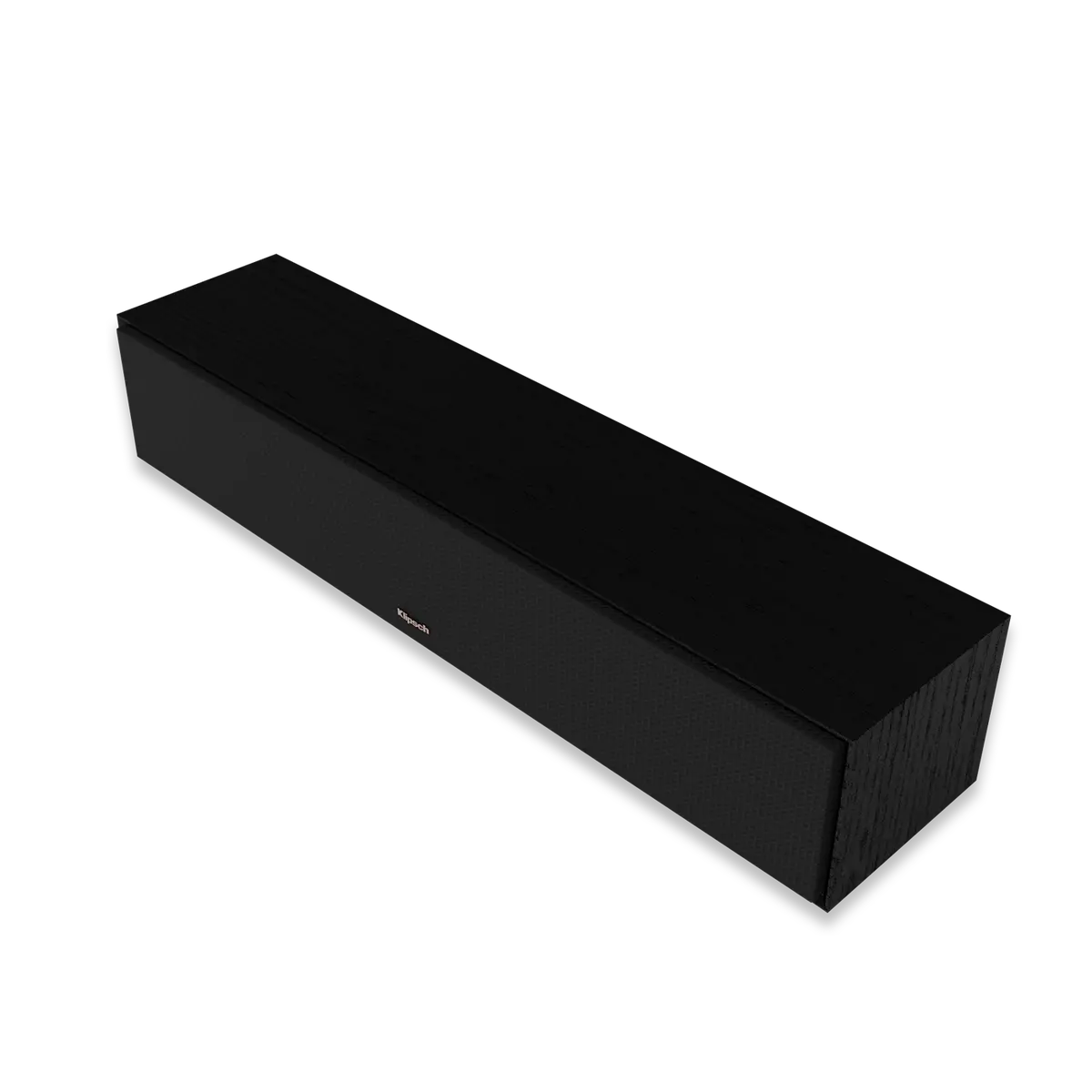

Description
The R-30C’s proprietary Tractrix® Horn design—expanded to 90° x 90° dimensions—provides precise waveguide control that maintains consistent directivity throughout an extended frequency range. This architectural refinement delivers focused acoustic output with improved spatial imaging and tonal coherence, making it an ideal choice for critical listening environments and home theater installations demanding professional-grade performance.
FREQUENCY RESPONSE 78Hz – 21kHz +/- 3dB
SENSITIVITY* 96 dB (In-Room)
POWER HANDLING (CONT/PEAK) 100W/400W
NOMINAL IMPEDANCE 8 ohms Compatible
CROSSOVER FREQUENCY 1,650 Hz
HIGH FREQUENCY DRIVER 1″ Aluminum LTS tweeter mated to a 90 x 90 square
Tractrix® Horn
LOW FREQUENCY DRIVER Quad 3.5″ spun-copper TCP woofers
ENCLOSURE MATERIAL MDF
ENCLOSURE TYPE Bass-Reflex via forward-firing Tractrix®ports
INPUTS Single Gold Plated Binding Posts
HEIGHT INCHES (MM) 5.0″ (126 mm)
WIDTH INCHES (MM) 26″ (660 mm)
DEPTH INCHES (MM) 6.8″ (173 mm)
PRODUCT WEIGHT LBS (KG) 13 lbs (5.9 kg)
FINISH Black Textured Wood Grain Viny
