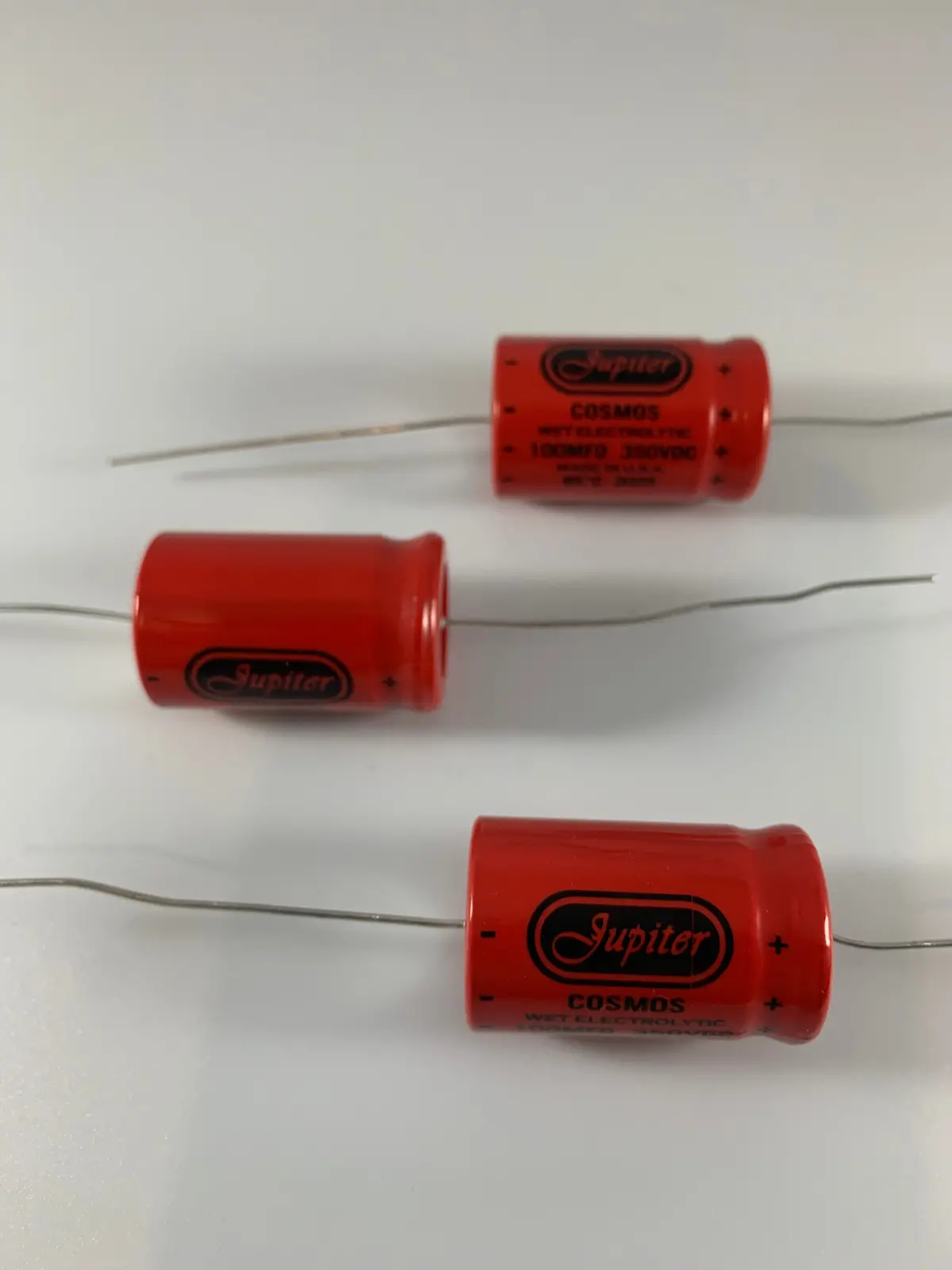

Jupiter Condenser – 100MFD @ 350V “Cosmos” Electrolytic Axial range Capacitor
Product Description
The Cosmos Electrolytic Capacitors is a new axial range from Jupiter Condenser!
Inspired from and designs based on early American Wet Electrolytic Capacitors used in audio amplifier, guitar amplifiers and pro audio applications.
See data sheets for specifications on individual values.
Capacitance 100MFD
Tolerance: +/-20%
Rated operation temperature: 85C
Voltage: 350VDC
ESR: 1.60 Ohm Max
DF: 12.06% Max
DC Leakage: 1122.5 uA max. after 5 minutes charge at rated voltage
Ripple T 120Hz: 0.499 Amps @ 65C
Diameter: 1.0″ (25.4 mm)
Length: 1.625″ (41.3 mm)
Application: Guitar Amplifier, Audio Amplifier and Pro Audio Application.
Made in USA of US made materials.
Datasheet:
Jupiter Cosmos Electrolytic Capacitors datasheet
