Description
Hammond Transformers
Premium guitar amplifier power transformers, output transformers and chokes.
| Our Part# | OEM Part# | Type | Rating |
| APD-270HX | P-T270HX | High Voltage | See Below |
| Alternates: |
|
Reference#: P-T270HX |
|

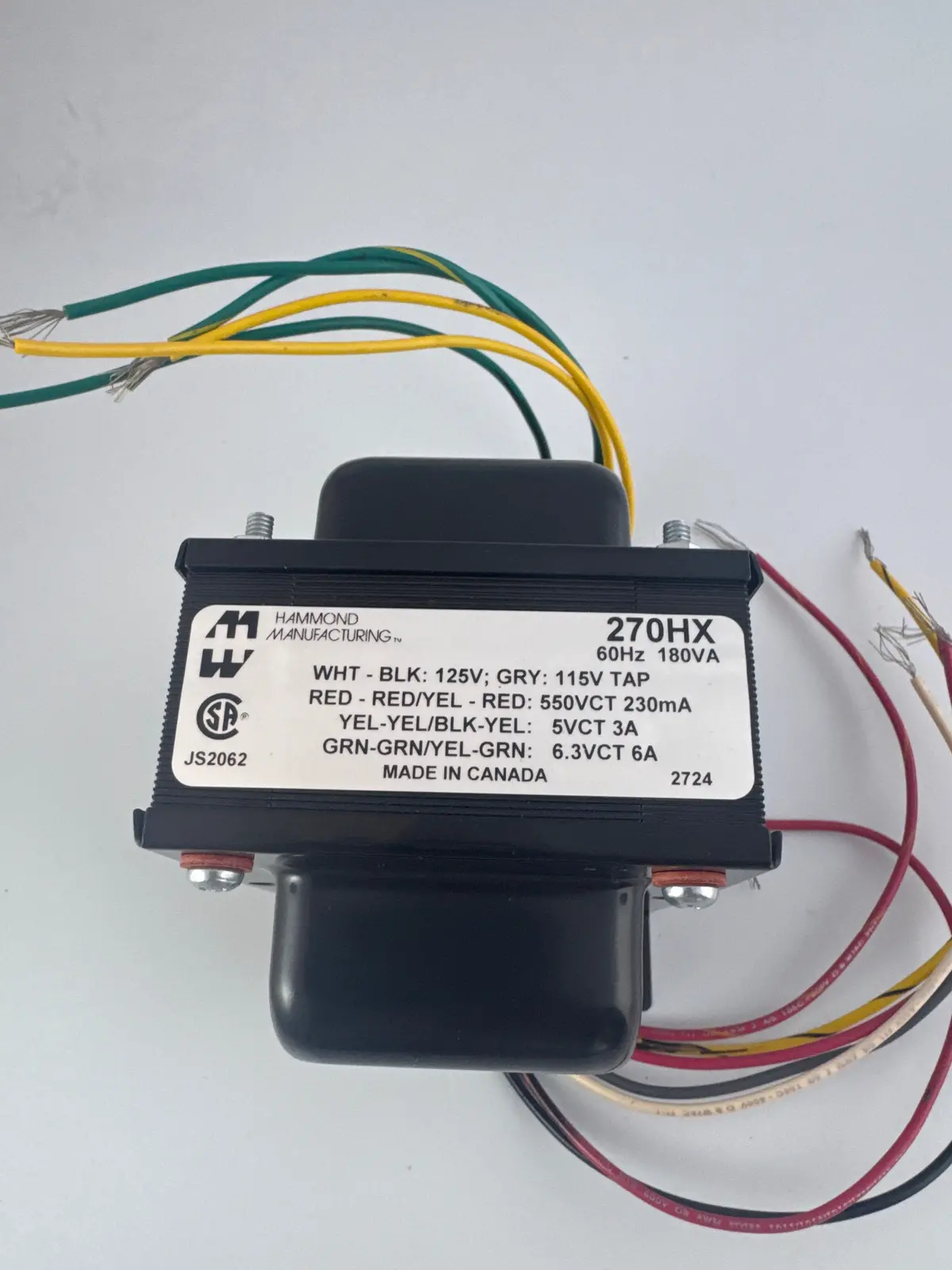

Description: Transformer – Hammond, High Voltage Plate & Filament, Vertical mount |
Vertical Mount. For Horizontal Mount, see P-T263-Z
Choice #1 (115 VAC Input):For those customers who need the 115V input – nothing has changed – simply use the White & Gray wires and tape the Black wire (see above schematic). Note: Gray wire is actually BROWN on only our Part Number P-T278CX. Choice #2 (125 VAC Input):For those customers who are seeing too high a secondary voltage due to higher primary line voltages (roughly 125V input) – use the White & Black wire and tape the gray wire (see schematic). CAUTION: NEVER connect power to BOTH the GRAY & BLACK wire – instantaneous destruction of the transformer will result!Primary 176 VA 115 VAC 60HZ |
| Classictone.net 40-18025, Classictone 40-18025, Classictone 40-18025, Classictone |
| Classictone 40-18025, Classictone 40-18025, Classictone, Classictone 40-18025 |
| Classictone 40-18025, Classictone 40-18025, Classictone.net 40-18025 |
