Transformer - Hammond - Low Voltage / Filament, Open, 24 Vct - Apd-166M24 1
Transformer - Hammond - Low Voltage / Filament, Open, 24 Vct - Apd-166M24 2

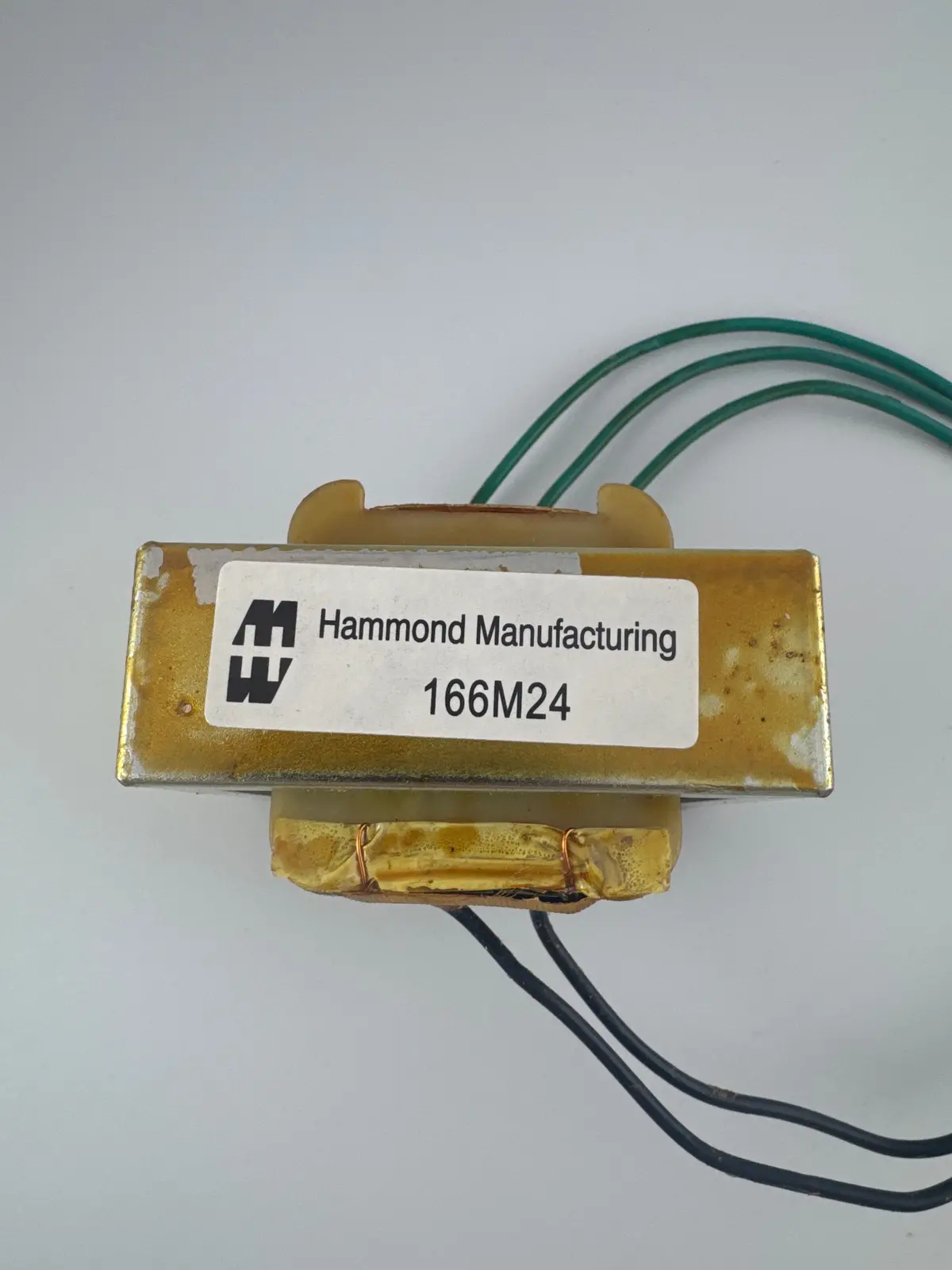

Hammond APD-166M24 Open-Frame Low-Voltage Filament Transformer – 24 VCT

Original price was: $62.00.Current price is: $41.33.

In stock

Quantity
SKU: P-T166M24 Category: Brand:

Description

Hammond Transformers
Premium guitar amplifier power transformers, output transformers and chokes.

Our Part# OEM Part# Type Rating
APD-166M24 P-T166M24 Low Voltage See Below



Alternates:

Reference#: P-T166M24

Description:

Transformer – Hammond, Low Voltage / Filament, Open, 24 VCT


  • Open Style, Chassis mount. Economical single primary 115 VAC, 60 Hz.
  • Secondary 24 C.T.
  • Center tapped secondary.
  • Open style, channel bracket, two hole chassis mount.
  • Minimum 6″ long leads.
  • Dual bobbin design – no electrostatic shield required.
  • Class B insulation (130 degrees, C).
  • Hi-Pot test of 2,000 V RMS.
  • UL listed (# E50394) & CSA certified (# LR3902).

Primary 72 VA   115 VAC  60HZ
Secondary  (R.M.S.)  24 C.T. @ 3A
Classictone.net 40-18025, Classictone 40-18025, Classictone 40-18025, Classictone
 Classictone 40-18025, Classictone 40-18025, Classictone, Classictone 40-18025
 Classictone 40-18025, Classictone 40-18025, Classictone.net 40-18025
