Description
DESCRIPTION

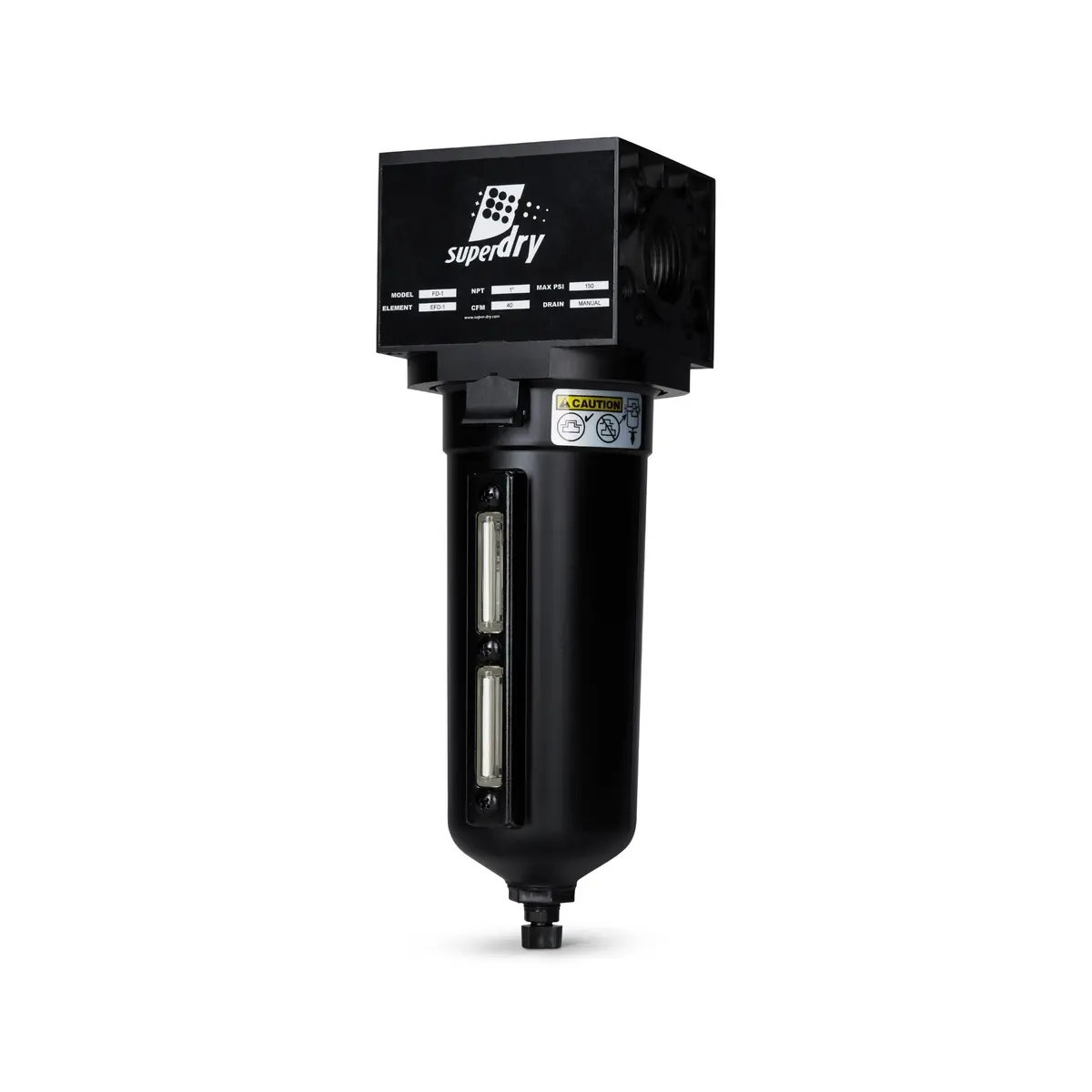

THIS PRODUCT IS NOW OBSOLETE. The F Series Filter effectively reduces contamination in your airstream, protecting critical processes and valuable equipment, while maintaining a low-pressure drop throughout the life of the filter element to ensure an efficient air preparation of the air for point-of-use applications. The filters are offered in two sizes. The ½’’ model has a polycarbonate bowl while the 1’’ model has a metal bowl. This series offers three levels of filtration. The FS model is the first stage of the separation of liquids. This model comes with an internal float drain. The FC model is the second stage for oil carry-over filtration. Finally, the FD model has a filtration element with encapsulated activated alumina to remove moisture.
SPECS
- INLET / OUTLET PORTS: 1″ NPT
- AIR FLOW @ 100 PSIG: 40 SCFM
- MAXIMUM INLET PRESSURE: 150 PSIG
- MAXIMUM INLET TEMPERATURE: 100°F (38°C)
- DRAINAGE: MANUAL DRAIN
- FILTRATION OF 5 MICRON
