Description

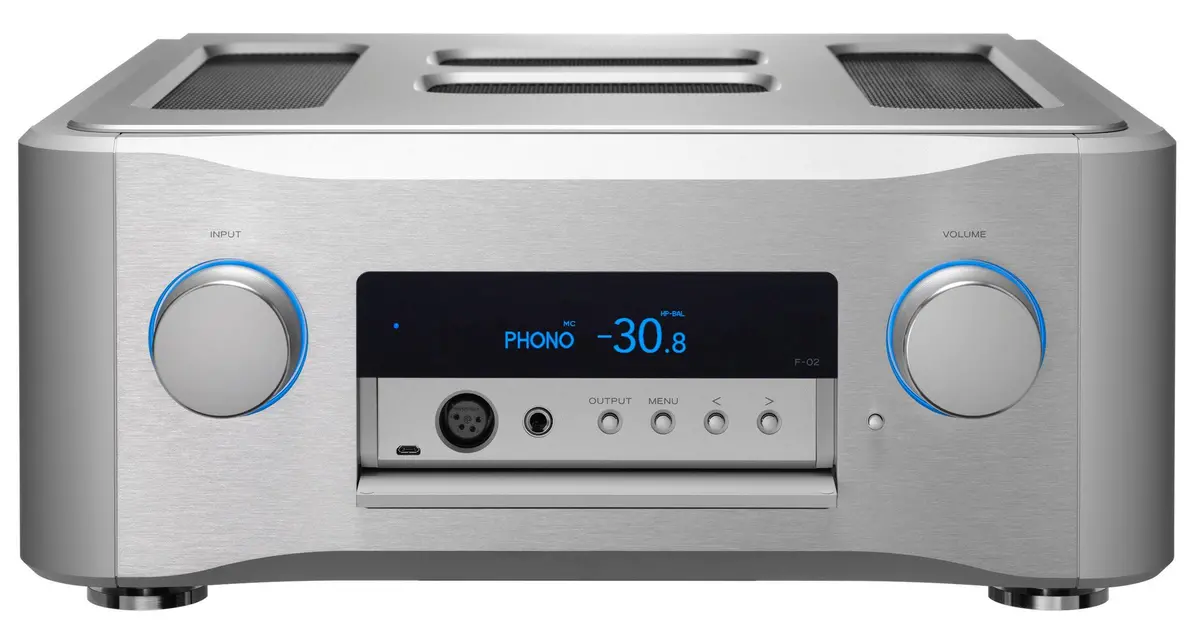

The “Finest” Integrated Amplifier You Could Ever Want – The new F Series integrated amplifiers are the culmination of a range of technologies designed to fulfill your ideals.
Incorporating all of the preamp and power amp developments from the flagship Grandioso “X” Edition, the new F Series integrated amplifiers deliver outstanding musicality that captures the rich textures of music in a single integrated amplifier. Despite the fact that the F Series is an integrated amplifier, it delivers a thorough quality and performance that will be the envy of all separate amp users. The F Series is the integrated amplifier that owners of Esoteric’s K and N Series digital players have been waiting for, and it pushes the boundaries of integrated amplifier technology.
Spec description
Speaker output:
Rated output power- 120W + 120W (8Ω)
240W + 240W (4Ω)
Compatible speaker impedance- 4Ω
Spear terminal- 1 set (L/R)
Analog audio inputs:
ES-Link Analog/XLR- 3 pairs
Input impedance- 10k (XLR)
RCA- 3 pairs
Input impedance- 10kΩ
PHONO- 1 pair (MM/MC switchable)
Input impedance
MM- 47kΩ
MC- 100Ω
Analog audio outputs:
ES-Link Analog- 1 pair
XLR- 1 pair
Output impedance- 100
Headphone outputs:
Standard 6.3mm (1/4) stereo jack- 1
4-pin XLR jack- 1
Maximum effective output
Unbalanced- 300mW + 300mW (into 32Ω)
Balanced- 600mW + 600mW (into 32Ω)
Applicable load impedance
Unbalanced- 16 to 600Ω
Balanced- 32 to 600Ω
External controls:
RS-232C- 1
DC trigger input (TRIGGER IN)- 1 (3.5mm mono mini jack)
DC trigger output (TRIGGER OUT)- 1 (3.5mm mono mini jack)
General:
Power Supply
Model for US/Canada- AC 120V, 60Hz
Model for Europe/Hong Kong- AC 230V, 50Hz
Power consumption- 280W
70W (no signal)
Standby power- 0.3W (when RC-232 is OFF)
0.6W (when RC-232C is ON)
Overall dimensions (WxHxD)- 445 x 191 x 471mm (including protrusions)
Weight- 32.4kg
Included accessories- Power cord x1
Remote control (RC-1339) x1
Batteries (AA) x2
Felt pads x4
Owner’s manual x1
Warranty card x1
Audio Performance
Frequency response- 10Hz to 100kHz (+0dB/-3.0dB, 1W output)
S/N ratio- 110dB (IHF-A)
Total harmonic distortion- 0.008% (1kHz, 8Ω, 120W)
Damping factor- 500
PREOUT S/N ratio
XLR, RCA inputs- 110dB (1V out)
PHONO MM input- 97dB (1V out)
PHONO MC input- 78dB (1V out)
Gain
Preamp- Maximum 18dB (adjustable, when volume at maximum)
Power amplifier- 28.5dB
Tone control
Treble- ±12dB (14kHz)
Middle- ±12dB (630Hz)
Bass- ±12dB (63Hz)
