ELEGOO Enhanced Nano V3.0+ Microcontroller Board (3-Pack)

Description

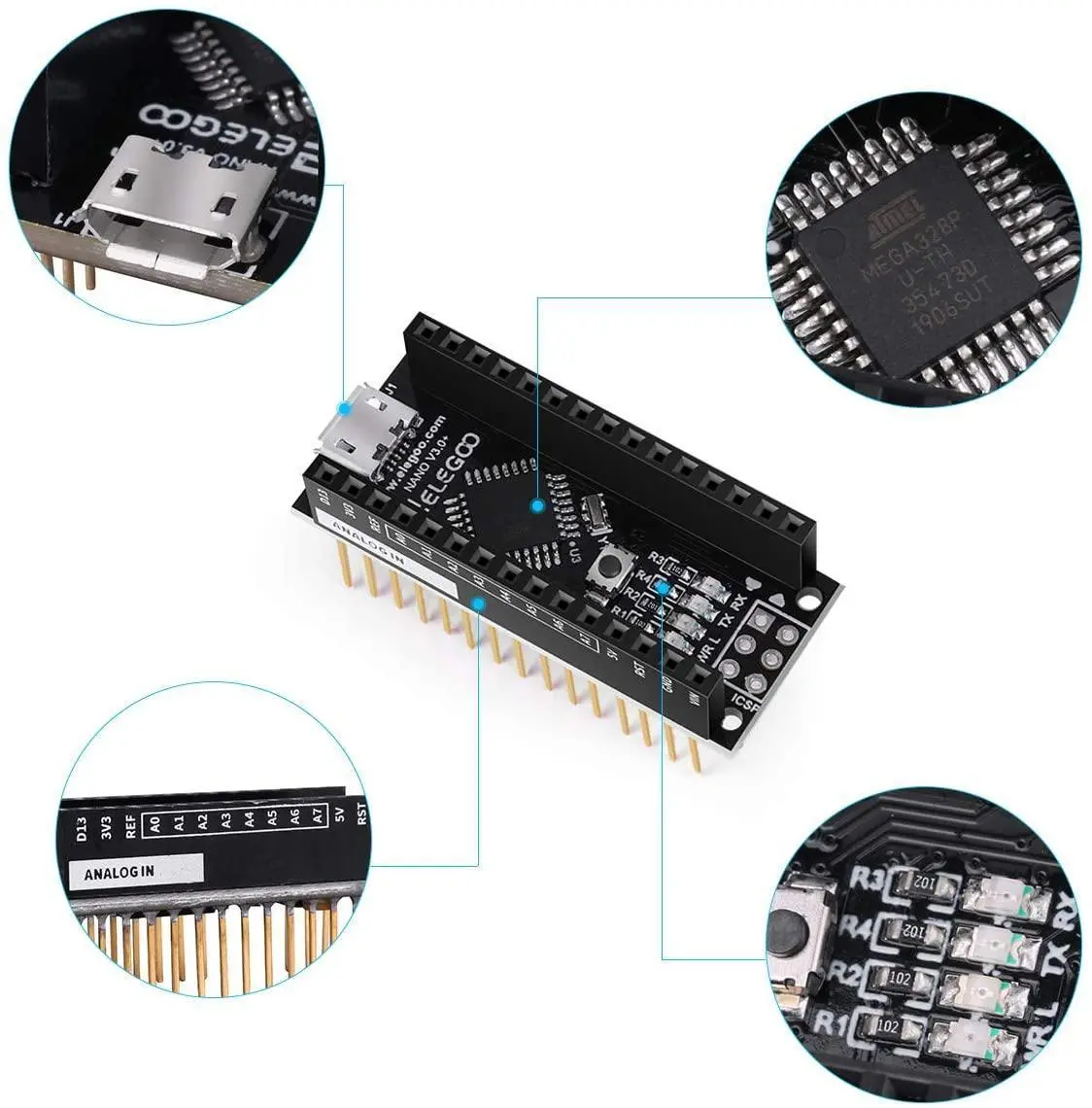

• Plug-and-Play. Old chip CH340 is replaced by HT42B534-1 which doesn’t need to install drivers and perfectly works with Windows 10, macOS, and Linux system. For Windows 7, please download the driver from ELEGOO website.
• On-board F/M pins header, which is convenient to use with breadboard and jumper wires, no soldering skills required.
• Pin names are clearly printed on the female header connector, more precise and much easier to use the wires.
• Upgraded USB port, use the universal micro USB type-B instead of Mini-USB. Three USB cables are included in the package.
• All boards are well protected in anti-static bags and contained in the outer package together with the cables. We offer a 1-year quality guarantee so you can buy it with confidence.

Getting Started with the ELEGOO Nano 3.0

The ELEGOO Nano 3.0 is a small, complete, and breadboard-friendly board based on the ATmega328P; offers the same connectivity and specs of the UNO board in a smaller form factor.

Technical Parameters:

• Microcontroller：ATmega328
• Architecture：AVR；Operating Voltage：5 V
• Flash Memory：32 KB of which 2 KB used by bootloader；SRAM：2 KB
• Clock Speed： 16 MHz；Analog IN Pins：8；EEPROM：1 KB
• DC Current per I/O Pins：40 mA (I/O Pins)
• Input Voltage：7-9 V
• Digital I/O Pins：22 (6 of which are PWM)；PWM Output：6
• Power Consumption：20 mA

All boards are well protected in anti-static bags and contained in the outer package together with the cables.

Package List:

• 3 X Nano Board V3.0 PLUS
• 3 X USB Cable

Sample project to test the humidity and temperature with NANO
