Description
A Vinyl Lovers Dream
The Revelation 2 Phono Preamplifier is the most straightforward realization of our design team’s dream to create the ultimate phono stage. We’ve updated it with C-SMPS, our proprietary, ultra-quiet, ultra-efficient power supply that reveals the subtlest nuances.
We started with a decades-tested and refined RIAA EQ circuit design. We coupled this circuit to a fully balanced output stage and an extraordinary selection of loading options to get the absolute best from any cartridge. Please note that preamplifier and phono stage power supplies are unique to each product’s power requirements and, therefore, are not interchangeable.
|

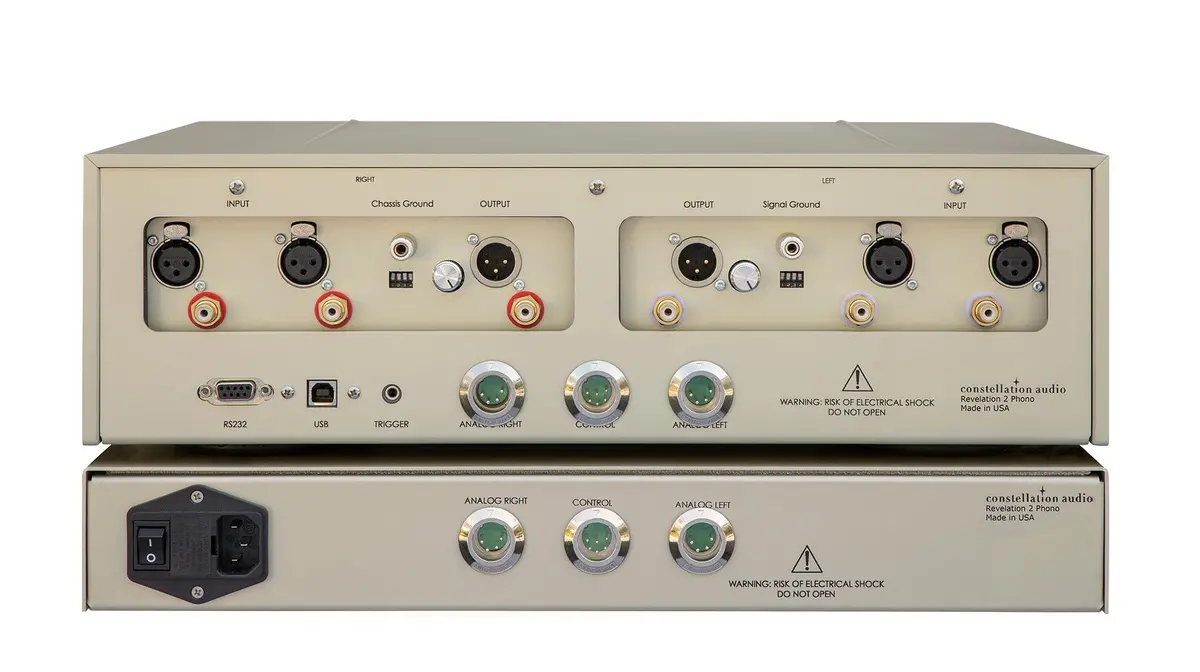

Inputs (MC) |
2 XLR Stereo |
| 2 RCA Stereo | |
| Outputs | 1 XLR Stereo |
|
1 RCA Stereo |
|
| Gain | 65 dB max (balanced and unbalanced) |
| Output noise | -96 dB re 2V output, 20 Hz to 20 kHz |
| THD+N | <0.008%, 10Hz – 20kHz |
| Frequency response | (+/-)0.10db 10Hz – 20kHz |
| 5 Ω to 1000 Ω, MC input | |
| 10K Ω to 47K Ω, MM input | |
| Load impedance | 0,100 or 200 pF, MM input |
| Output Impedance | < 5 Ω (balanced and unbalanced) |
| EQ | RIAA curve |
| Weight (preamp + power supply unit) | 35 lbs./16 kg |
| Weight (power supply only) | 11 lbs./5 kg |
| Phono dimensions | 17″/432mm X 15″/381mm X 5.5″/140mm (WDH) |
| Dimensions (power supply unit) | 17″/432mm X 14.5″/368mm X 2.75″/70mm (WDH) |
