Description
Revealing Every Detail

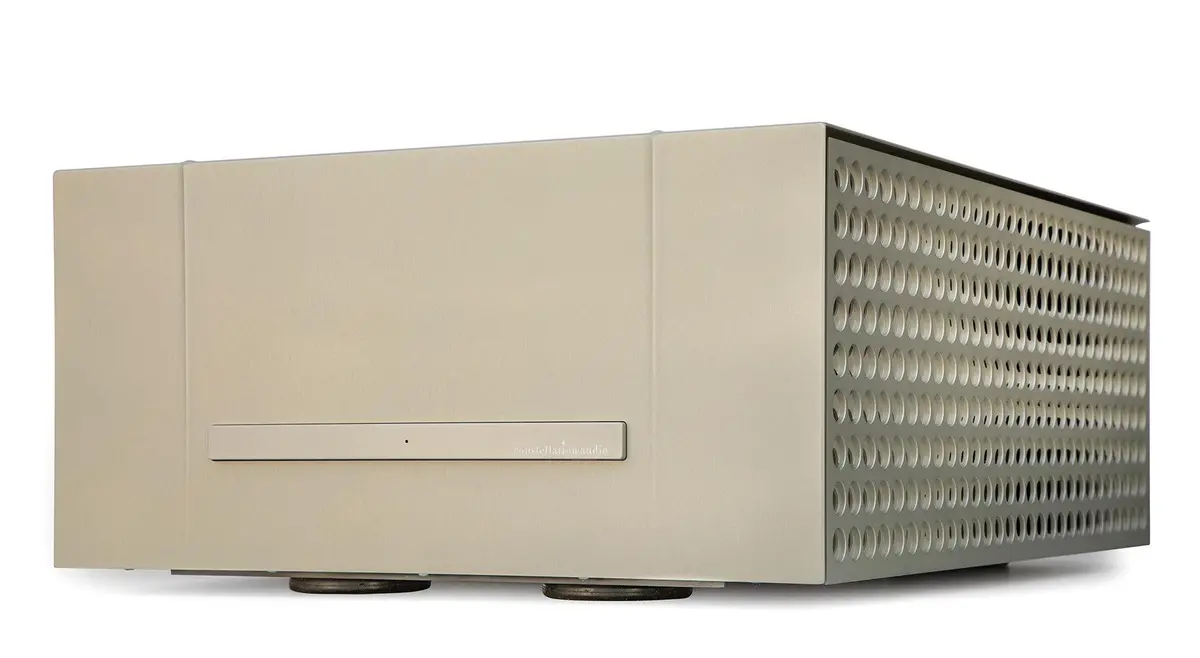

Our Revelation 2 Stereo and Mono Amplifiers distill the power and passion of our original amplifiers into a more compact chassis. And now we’ve added C-SMPS, the best amplifier power supply ever created.
The Revelation 2 amplifiers use our Balanced Bridged technology: a musical, single-ended amplifier module. To achieve the desired output, we add modules, rather than increasing circuit complexity. The result? Ample power to drive any speaker, with the subtlety of a small amplifier.
| Inputs |
2 XLR (1 Constellation Link) |
| 2 RCA | |
|
Max power @ 0.1% THD+N, 20Hz-20kHz @ 8 Ω |
300W |
| Max power @ 0.1% THD+N, 20Hz-20kHz @ 4 Ω | 600W |
| Input sensitivity @ power at 0.1% into 8 Ω | 15V direct i/p, 3.7V non-direct |
| Input sensitivity @ power at 0.1% into 4 Ω | 12.5V direct i/p, 2.6V non-direct |
| Outputs | Metal binding posts |
| Frequency response | 10Hz – 80KHz +/- 0.05dB |
| Gain – direct input | 12 dB |
| Gain – non-direct input | 25.2 dB |
| AC power draw – standby | < 0.5W |
| AC power draw – idle | 135W |
| AC power draw – @ max power in 8 Ω | 1300W |
| AC power draw – @ max power in 4 Ω | 1970W |
| Power factor – partial power | 0.98 |
| Power factor – full power | 1 . 00 |
| Damping factor | 150 |
| S/N ratio DC-90KHz ref 1 volt, A weighted | 100dB |
| S/N ratio DC-90KHz ref full power, unweighted | 115dB |
| S/N ratio DC-90KHz ref full power, A weighted | 125dB |
| Output impedance | 0.05Ω |
| Weight | 55 lbs./25 kg |
| Dimensions | 17″/432mm X 23″/584mm X 8.5″/216mm (WDH) |
