Description
An Inspiring Start
Our Inspiration 2 Stereo and Mono amplifiers distill the power and passion of our original amplifiers into a more compact chassis. And now we’ve added C-SMPS, the best amplifier power supply ever created. The Inspiration 2 amplifiers use our Balanced Bridged technology: a musical, single-ended amplifier module. To achieve the desired output, we add modules rather than increasing circuit complexity. The result? Ample power to drive any speaker with the subtlety of a small amplifier.

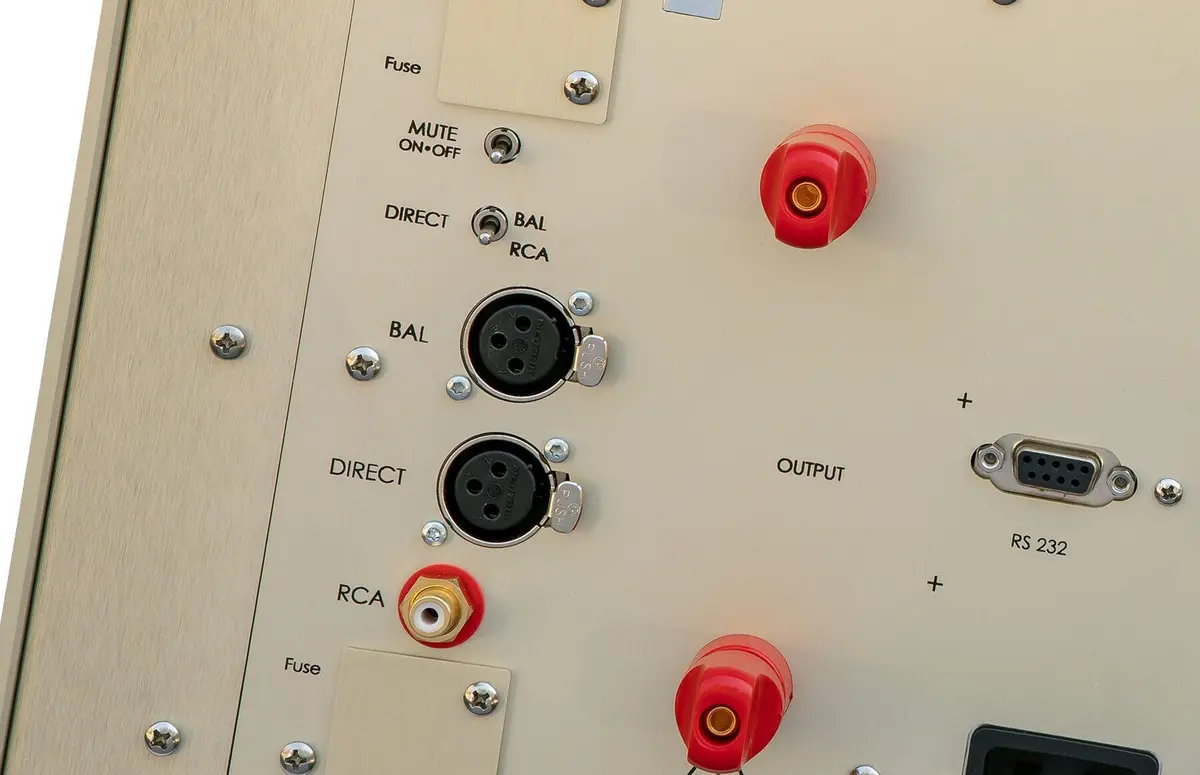

| Inputs | 3 XLR (1 Constellation Link) |
| 1 RCA | |
|
Max power @ 0.1% THD+N, 20Hz-20kHz @ 8 Ω |
500W |
| Max power @ 0.1% THD+N, 20Hz-20kHz @ 4 Ω | 1000W |
| Input sensitivity @ power at 0.1% into 8 Ω | 17.8V direct i/p, 3.5V non-direct |
| Input sensitivity @ power at 0.1% into 4 Ω | 16V direct i/p, 3.5V non-direct |
| Outputs | Metal binding posts |
| Frequency response | 10Hz – 80KHz +/- 0.05dB |
| Gain – direct input | 12 dB |
| Gain – non-direct input | 25.2 dB |
| AC power draw – standby | < 0.25W |
| AC power draw – idle | 135W |
| AC power draw – @ max power in 8 Ω | 1300W |
| AC power draw – @ max power in 4 Ω | 1500W |
| Power factor – partial power | 0.98 |
| Power factor – full power | 1 . 00 |
| Damping factor | 80 |
| S/N ratio DC-90KHz ref 1 volt, A weighted | 100dB |
| S/N ratio DC-90KHz ref full power, unweighted | 115dB |
| S/N ratio DC-90KHz ref full power, A weighted | 125dB |
| Output impedance | 0.1Ω |
| Weight | 43 lbs./19.5 kg |
| Dimensions | 18.75″/476mm x 24.25/616mm x 11.5″/292mm (WDH) |
