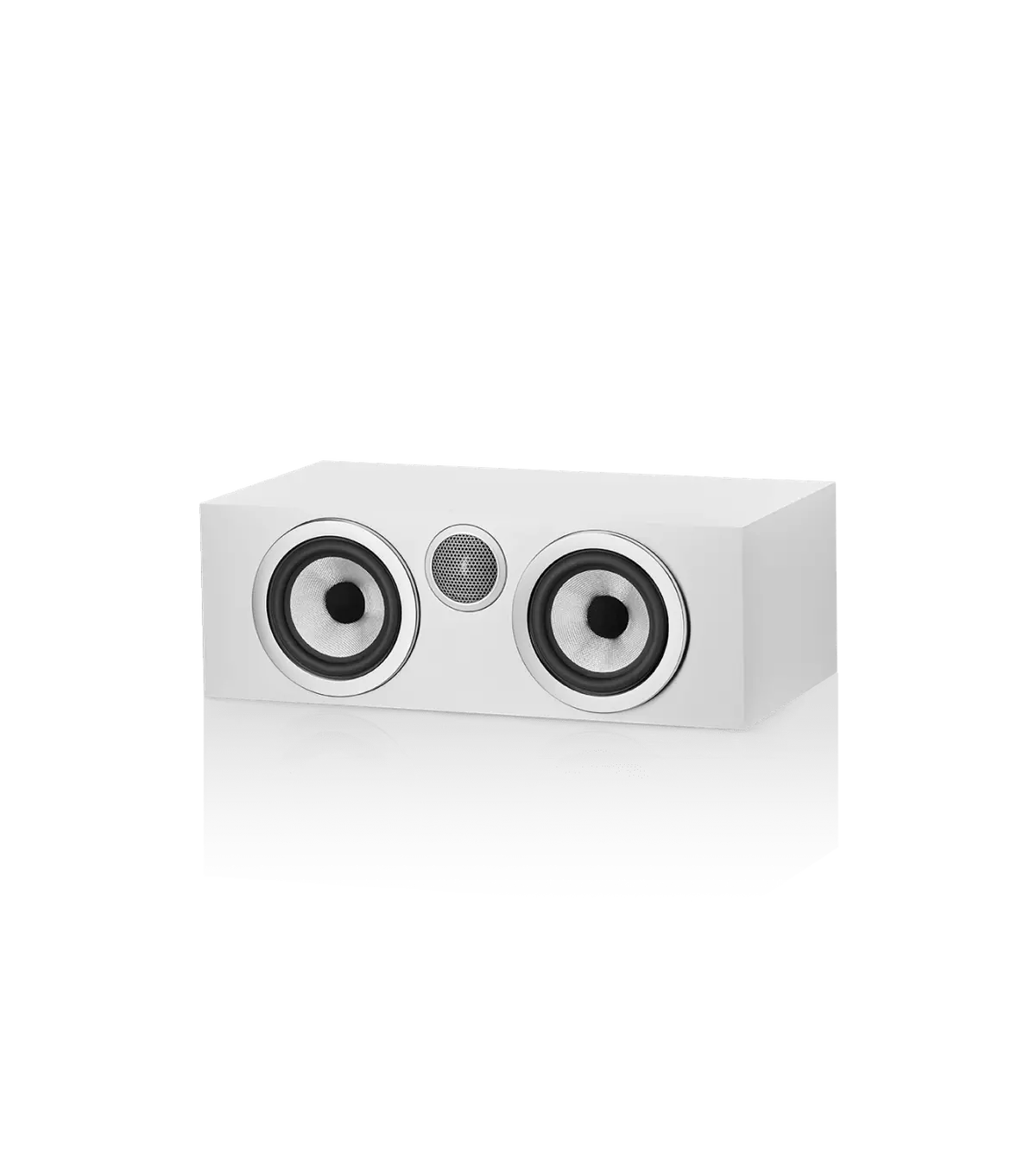

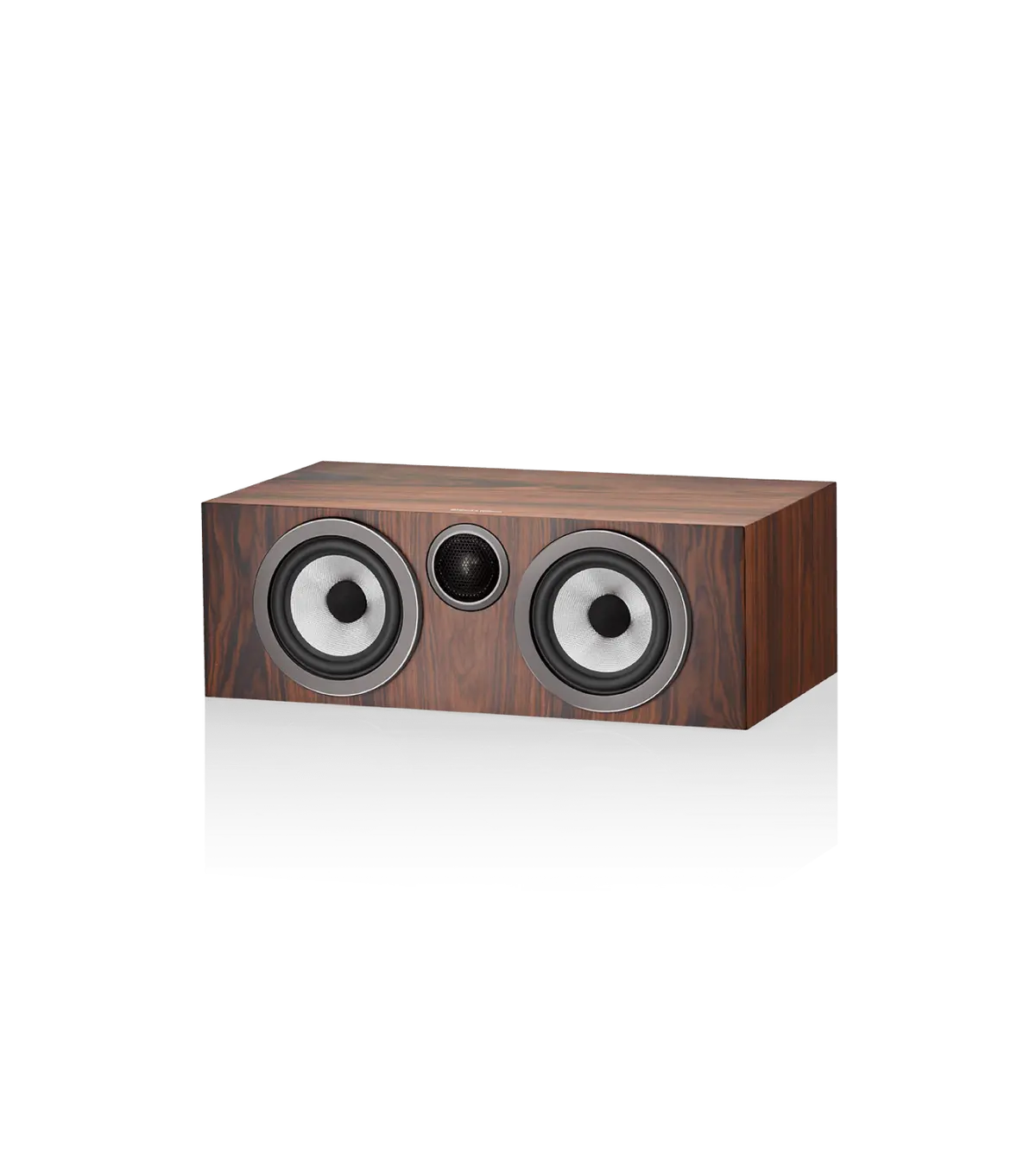

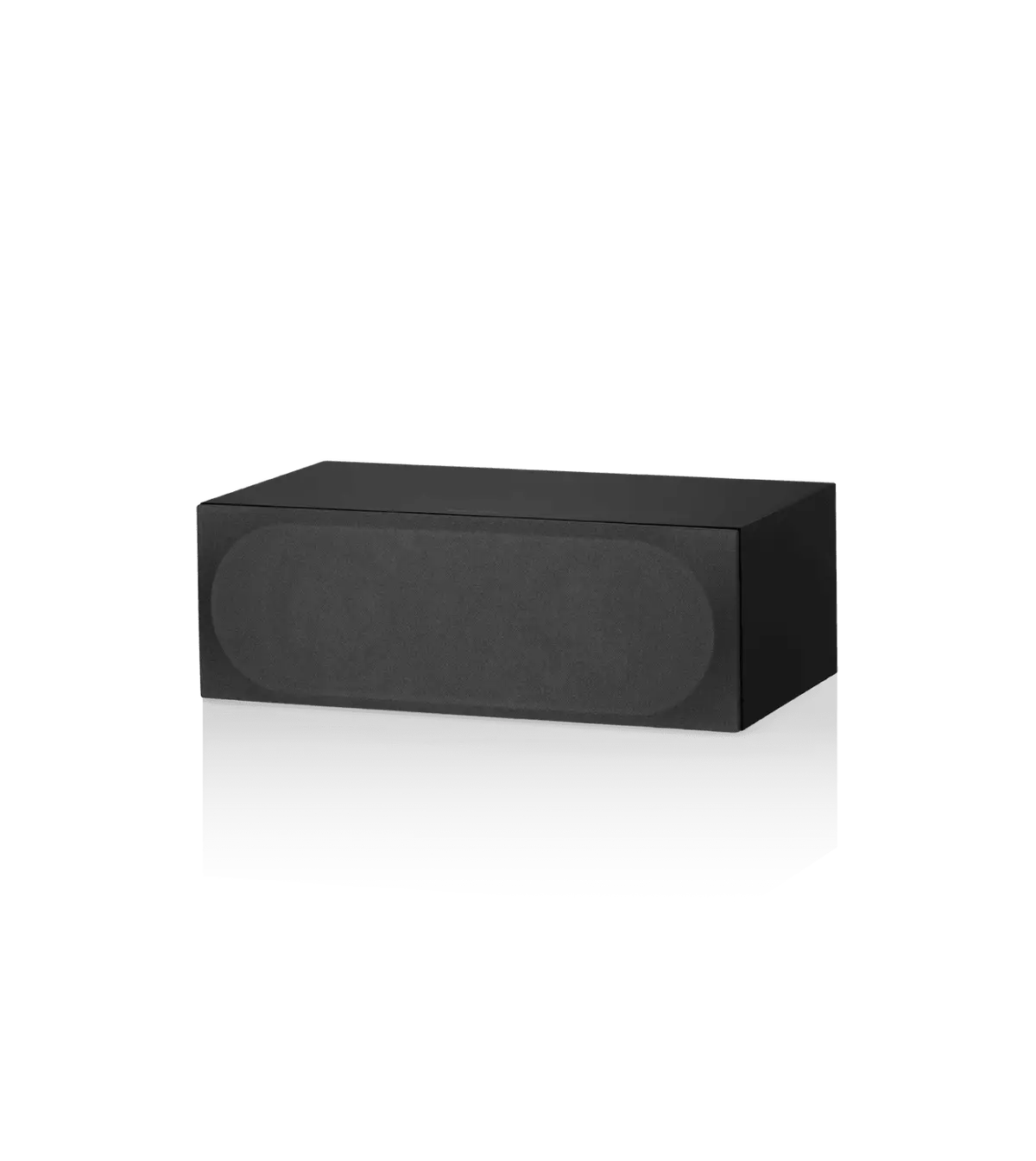

HTM72 S3 is the more compact center-channel speaker in the new 700 Series. It features a Carbon Dome tweeter and twin Continuum cone Mid/Bass drivers. It’s the perfect partner for a home theater system based around the 704 S3, 706 S3, or 707 S3.
HTM72 S3 is the more compact center-channel speaker in the range, bringing superior dialogue clarity to the home theater experience.
Carbon Dome tweeters are purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminum double-dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail.Thanks to its composite construction, the Continuum™ cone avoids the abrupt transitions in behavior that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency.Precision sound for sophisticated listening.
SpecificationsSize & weight Dimensions- Height: 165mm (6.5 in) cabinet onlyWidth: 477mm (18.8 in) cabinet onlyDepth:266 mm (10.5 in)cabinet only302mm (11.9 in) including grille and terminalsNet weight-9.66kg (21.3 lb)Technical detailsTechnical features-Decoupled Carbon Dome tweeterContinuum cone bass/midrangeFlowportDescription- 2-way vented-box systemDrive units-1x ø25mm (1 in) Decoupled Carbon Dome high-frequency2x ø130mm (5 in) Continuum cone bass/midrangeFrequency range-48Hz and 33kHzFrequency response-70Hz-28kHz ±3dBSensitivity-87dB spl (2.83Vrms, 1m)Harmonic distortion-8 Ω (minimum 4.3 Ω)Recommended amplifier power-30W-120W into 8 on unclipped programMax recommended cable impedance-0.1 Ω
