Description

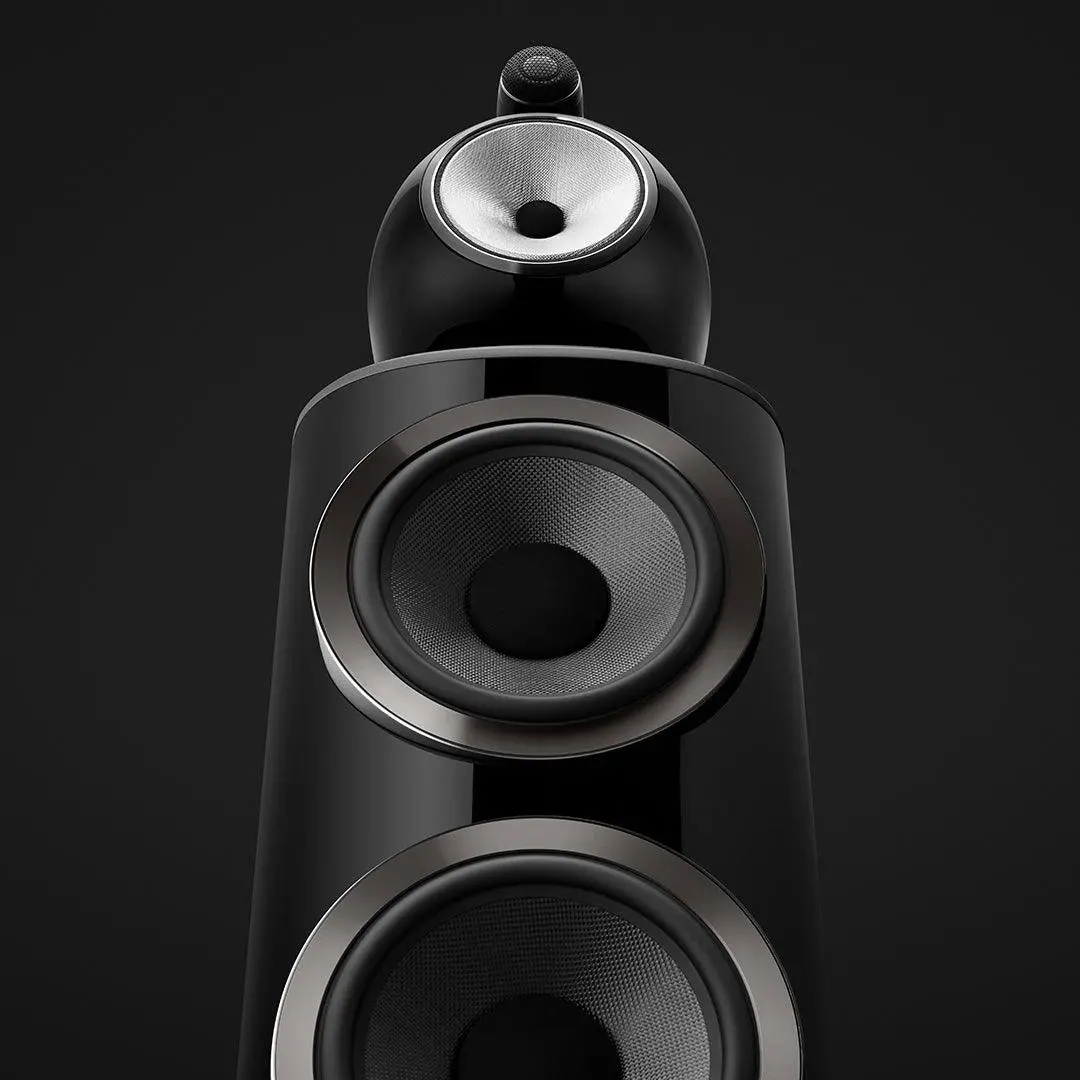

The loudspeaker that sets the standard other high-end designs will be judged by for years to come. Endowed with every new technology the 800 Series Diamond has to offer, the reference-quality 801 D4 is an instant icon.
Technical Details
Technical features
Diamond tweeter
Solid body Tweeter-on-Top
Continuum™ cone FST
Matrix™
Anti-Resonance plug
Biomimetic Suspension
Turbine™ Head
Aerofoil™ cone bass units
Flowport
Description
3-way vented-box system
Drive units
1x ø25mm (1in) Diamond dome high-frequency
1x ø150mm (6in) Continuum cone FST midrange
2x ø250mm (10in) Aerofoil cone bass units
Frequency range
13Hz to 35kHz
Frequency response
15Hz to 28kHz (+/-3dB from reference axis)
Sensitivity
90dB (on axis at 2.83Vrms at 1m)
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m on axis)
<1% 30Hz – 20kHz
<0.3% 100Hz – 20kHz
Nominal impedance
8Ω (minimum 3.0Ω)
Recommended amplifier power
50W – 1000W into 8Ω on unclipped programme
Max recommended cable impedance
0.1Ω
