Description
Thanks to 706 S3’s decoupled Carbon Dome tweeter and carefully upgraded crossover, it provides exceptional detail and insight into your music, while its substantial 165mm (6.5in) Continuum Cone bass/midrange drive unit provides ample scale and extension for use in larger spaces.
* Stand(s) not included.

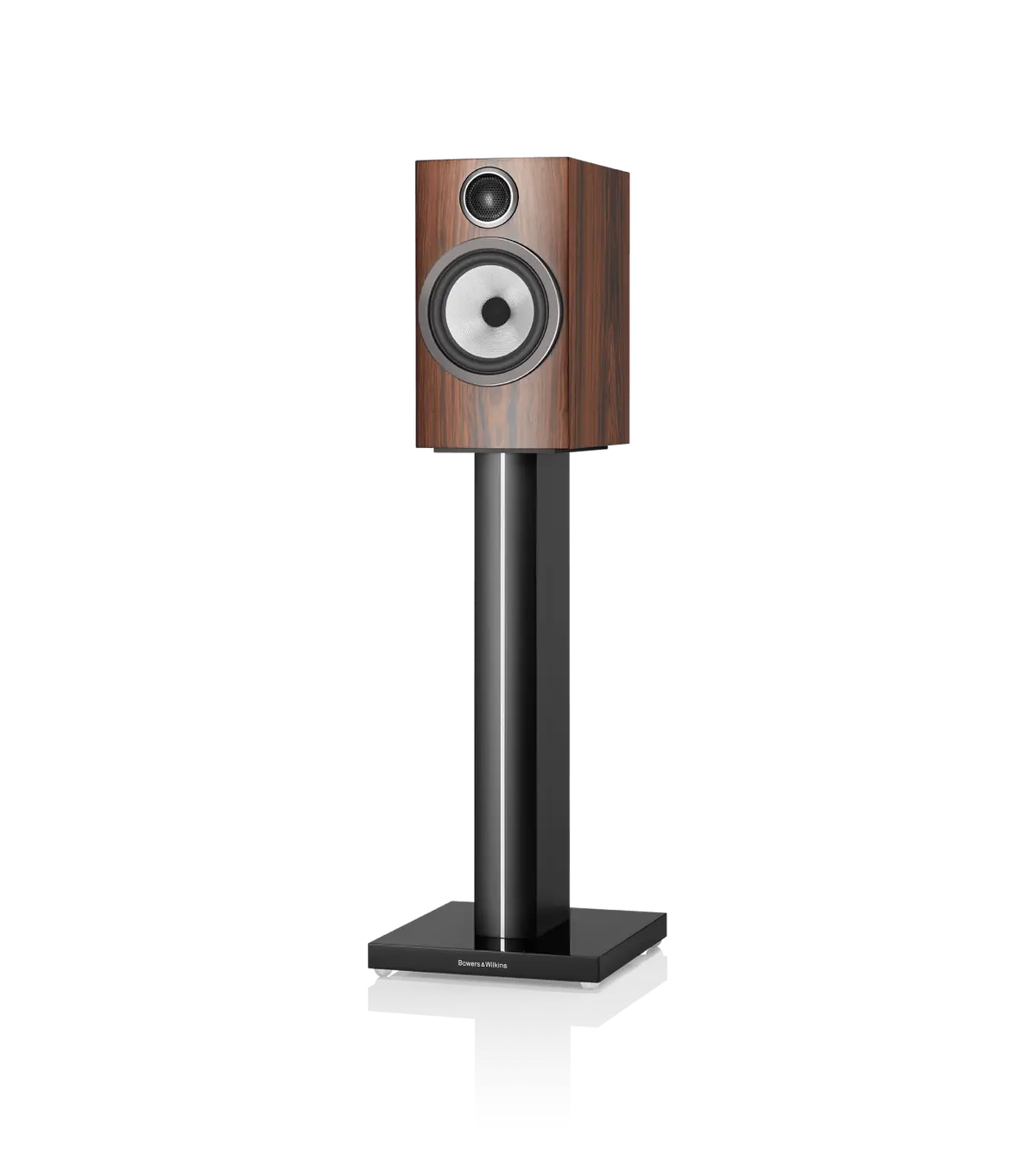

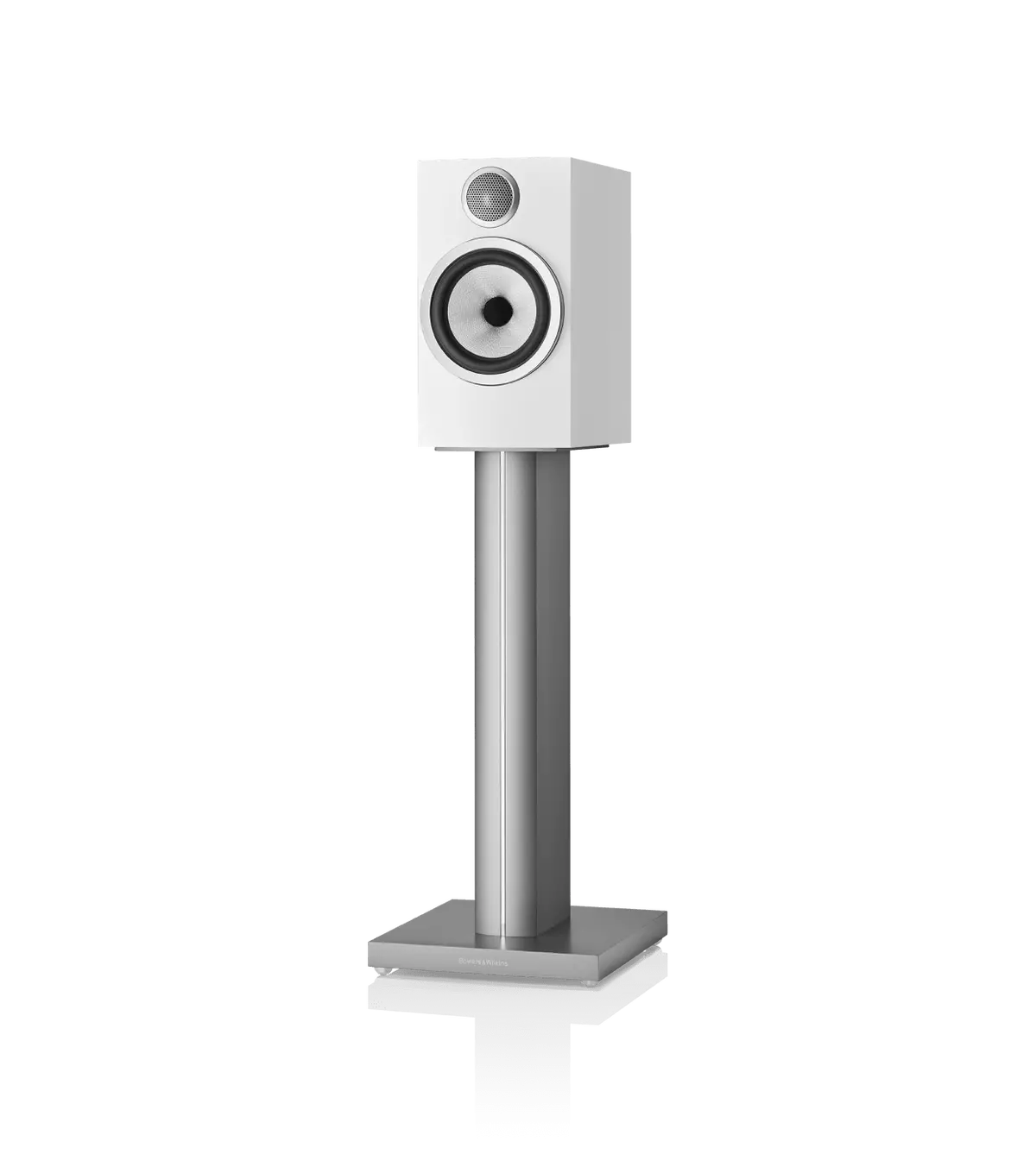

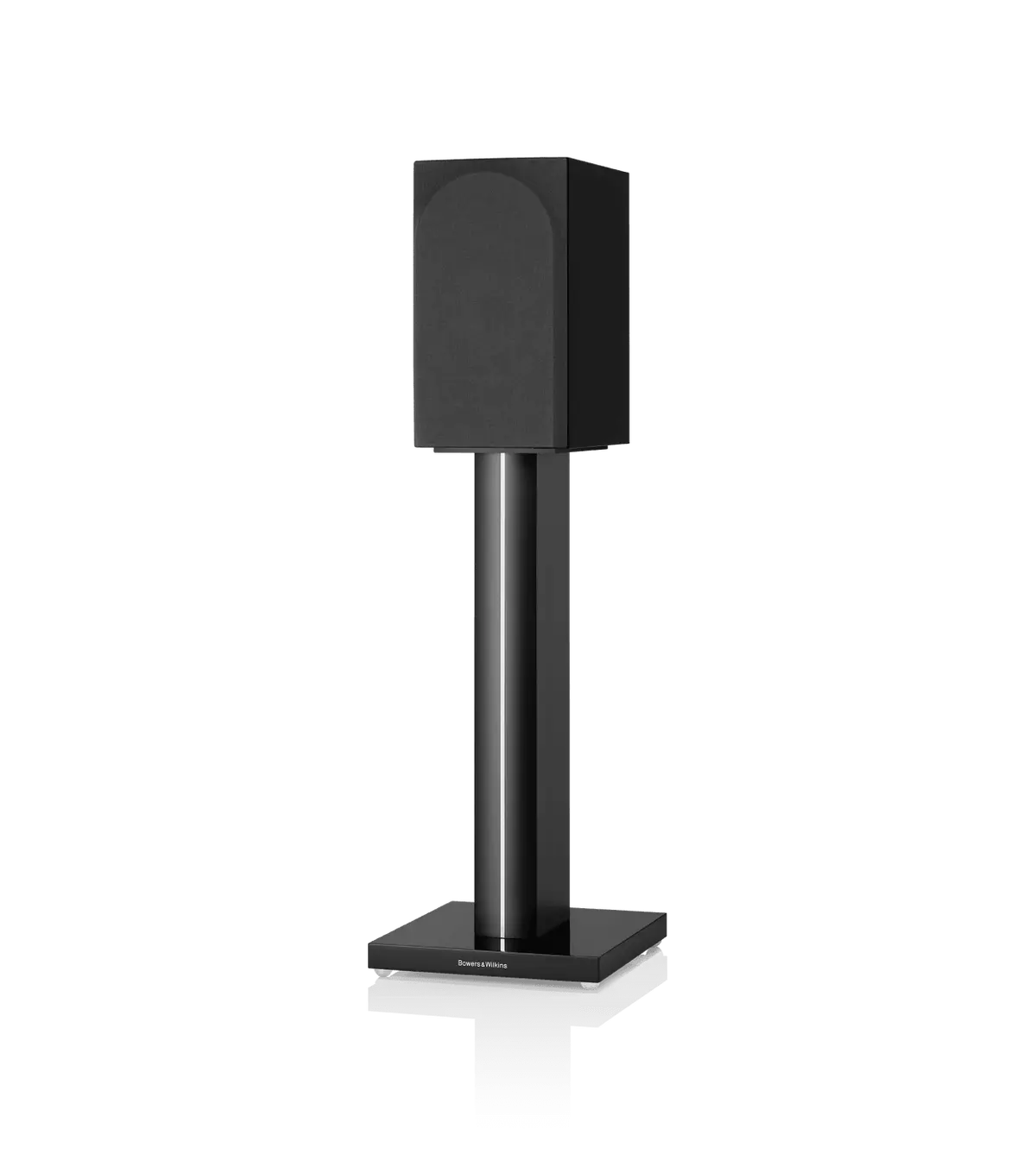

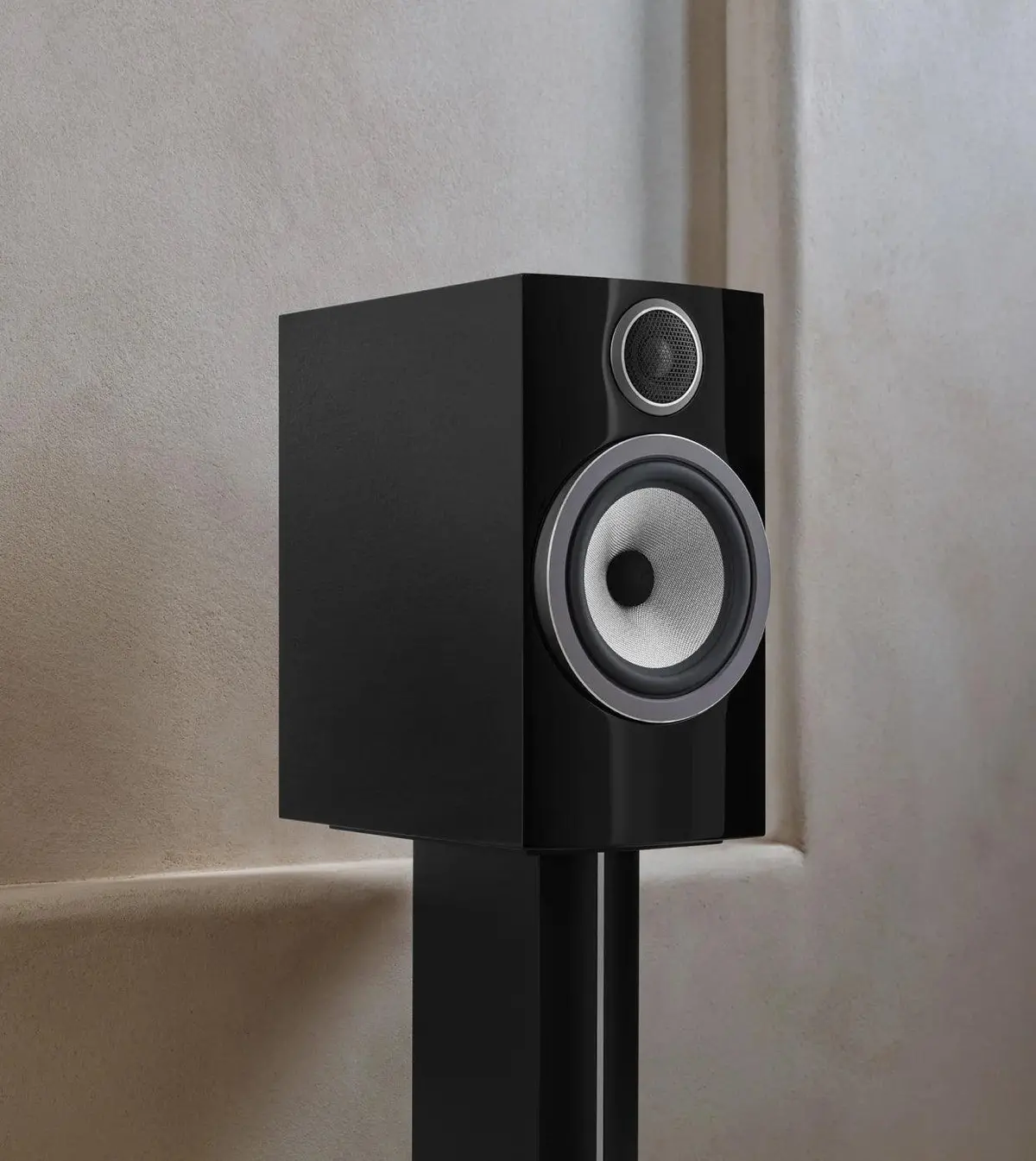

The powerful 706 S3 is the ideal stand-mount loudspeaker for delivering exceptional sound in larger spaces.
Carbon Dome tweeters are purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminum double-dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail.
Thanks to its composite construction, the Continuum™ cone avoids the abrupt transitions in behavior that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency. The new curved cabinet baffle and individual drive unit pods are inspired by the 800 Series Diamond, and greatly reduce cabinet coloration, ensuring a cleaner, more immersive sound.Precision sound for sophisticated listening.
SpecificationsSize & weightDimensions- Height: 345mm (13.6 in) cabinet onlyWidth: 192mm (7.6 in) cabinet onlyDepth: 297mm (11.7 in) cabinet only334mm (13.1 in) including grille and terminalsNet weight- 8.42kg (18.6 lb)Technical detailsTechnical features- Decoupled Carbon Dome tweeterContinuum cone bass/midrangeFlowportDescription- 2-way vented-box systemDrive units- 1x ø25mm (1 in) Decoupled Carbon Dome high-frequency1x ø165mm (6.5 in) Continuum cone bass/midrangeFrequency range- 45Hz and 33kHzFrequency response- 50Hz-28kHz ±3dBSensitivity-88dB spl (2.83Vrms, 1m)Harmonic distortion- 2nd and 3rd harmonics (90dB, 1m on axis)<1% 100Hz-22kHz<0.5% 150Hz-20kHzNominal impedance- 8Ω (minimum 3.7Ω)Recommended amplifier power- 30W-120W into 8Ω on an unclipped programMax recommended cable impedance- 0.1Ω
