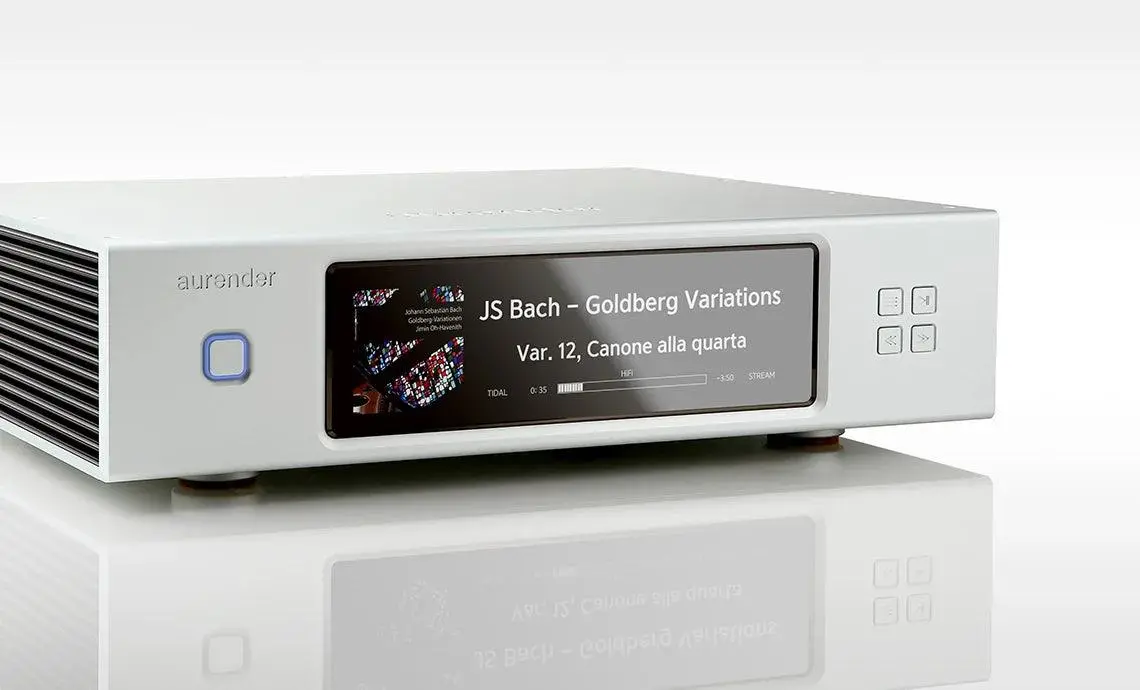

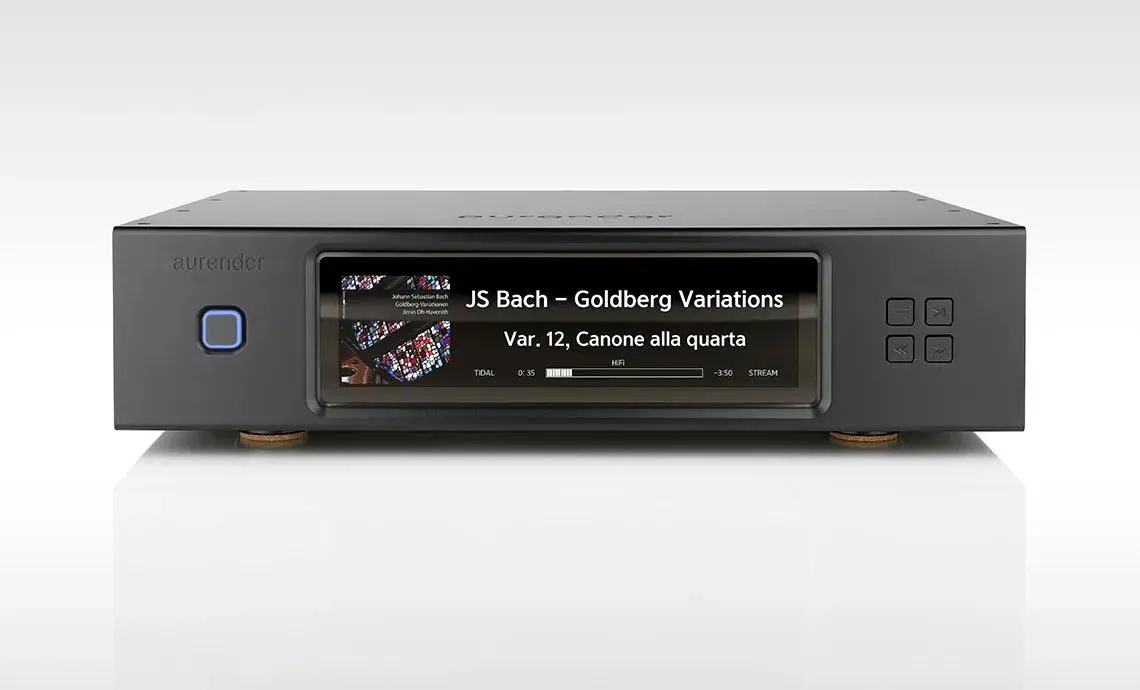

Aurender N20 High-End Digital Music Transport and Server

Description

The Aurender N20 is a high-performance network transport and music server designed for audiophiles. It features two user-installable 2.5″ drive slots, multiple digital outputs including USB, AES/EBU, Coaxial, BNC, and Optical, plus a word clock input for precise synchronization. Its OCXO clock reduces jitter for clear, detailed sound. The large 8.8” color display shows album art and track info. With a hybrid linear power supply and support for high-resolution files, the N20 delivers clean, stable audio and flexible storage options to suit any system.

Physical SpecificationsDimensions- 16.9″W x 14″ W x 4.4″ H (3.9″H)
Weight- 29.8 lbMaterial- Machined Aluminum ChassisFront Panel Display- 8.8″ 1920 x 480 Wide IPS Color LCD
Technical SpecificationsPower Supply- 1 x50W (CPU), 2x35W (4 cores) for Digital Output BoardCPU- Intel Low Power Quad CoreRAM- 8GBLibrary Storage Capacity- 2x 2.5″ Compartments (User-Installable Storage)SSD for System & Cache- 480Gb NVMEData USB Ports- 2X USB 3.0 (Rear)Software Suite- Aurender ConductorEthernet Port- Double-Isolated Gigabit LANUninterruptible Power Supply (UPS)- Yes (Super Capacitors)Power Consumption- Play (40W), Peak (70W), Standby (3.5W)CD Ripping Capability- N/A
Audio SpecificationsAnalog Outputs- N/ADAC Chipset- N/AAudio Word Clock- OCXOAnalog Outputs Supported Format- N/ADigital Outputs-  USB Audio (Dedicated), AES/EBU (OCXO Controlled), BNC Coax SPDIF (OCXO Controlled), RCA Coax SPDIF (OCXO Controlled), Optical/TosLink SPDIF (OCXO Controlled)USB Output Supported Format-  Up To 32-bit / 384kHz, DSD128 (DoP), DSD512 (Native) SPDIF & AES/EBU Output Supported Format- PCM: Up to 32-bit / 192 kHz; DSD: Up to DSD64 via DoPDigital Inputs- N/AHeadphone Section- N/AMaster Clock Input- Coaxial BNC 75Ω – 10MHz, 12.8MHz, 44.1-48kHz (multiples from 1-512x)MQA Support- MQA Core-Decoder Upgrade availableCompatible Formats- DSD (DSF, DFF), WAV, FLAC, AIFF, ALAC, M4A, APE and othersDSD-to-PCM Conversion- DSD64/128/256/512 to 88.2/176.4kHz
