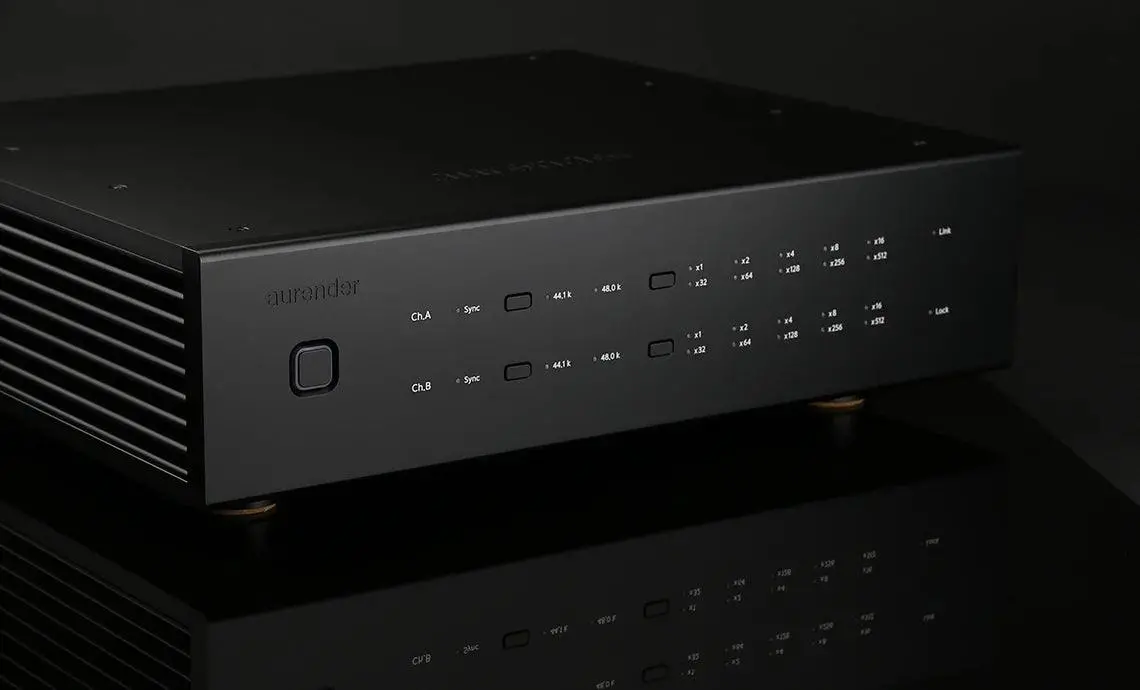

Aurender MC20 High-Precision Master Clock for Audio Systems

Description

The Aurender MC20 is a precise Master and Word Clock generator that synchronizes your digital audio devices to reduce jitter and improve sound clarity. It uses a stable rubidium 10 MHz clock and dual OCXO word clocks at 44.1 kHz and 48 kHz for versatile connectivity. This ensures natural, detailed audio with accurate instrument placement, enhancing your digital system’s performance.

Audio Specifications SPDIF Sync Input- C oaxial BNC, 75Ω (BNC 75Ω)Clock Output-  Rubidium Master Clock: 10MHz 2ea. (75Ω), 2ea. (50Ω), 0.7Vrms (±10%)
Word Clock: CH. A 2ea (75Ω), CH. B 2ea (75Ω)Connectivity- USB (Reserved for future use)LED Indicators/Button- LED Indicators: Clock LED, Sync LED, Multiplier LED 10ea (Ch)
Select Button: Clock Select, Multiple Select,
Power ButtonPhase Noise (Rubidium)- <  -130dBc / Hz (10 Hz)
< -140dBc / Hz (100 Hz)Freq. Short-term Stability (Rubidium)- <2×10⁻¹¹ (1 s)
<1×10⁻¹¹ (10 s)
<2×10⁻¹² (100 s)Phase Noise (OCXO)- < -90dB/Hz (1Hz)
< -115dB/Hz (10Hz)
< -127dB/Hz (100Hz)
< -143dB/Hz (1kHz)Freq. Stability (OCXO)- <5 x 10⁻¹⁰Size (WxHxD)- 430 x 106 x 370 mm (unit only), (127 mm height with foot)
16.9 x 4.2 x 14.6 inch (unit only), (5.0 in height with foot)Weight- 20.3kg, 44.7lbsInput Voltage- 110V / 220VPower Consumption- Standby: 5.7W / Power On: Start Warm-up (160W), State Lock (58W)
